  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

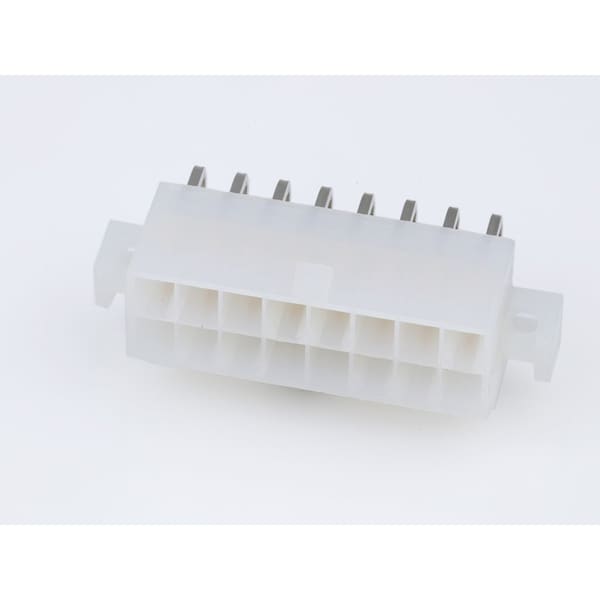

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle 39295163 - main

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 39295163

  • Zoro # G405910765

product price: $5.59
/ea
Sold in multiples of 20 for $111.80

Key Features

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39295163
Zoro #
G405910765
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Hole Center to Center
4.2 mm
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-2
Contact Finish
Gold Plated
Number of Contacts
16
Current Rating
13 A
Shrouded
Fully
First Mate / Last Break
No
Max-Cycle
1
Max-Temp
260
Plating min - Mating
0.762µm
Polarized to Mating Part
Yes
PCB Locator
Yes
Breakaway
No
Material - Plating Mating
Gold
Pitch - Mating Interface
4.20mm
Flammability
94V-2
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
13.0A
Durability (mating cycles max)
30
Max-Duration
5
Polarized to PCB
Yes
Component Type
PCB Header
PCB Retention
Yes
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Guide to Mating Part
No
Orientation
Right Angle
Circuits (Loaded)
16
Glow-Wire Capable
No
Material - Metal
Brass
Keying to Mating Part
None
Material - Resin
Nylon
UL
E29179
Product Name
Mini-Fit Jr.
Stackable
No
CSA
LR19980
