Sta-Kon

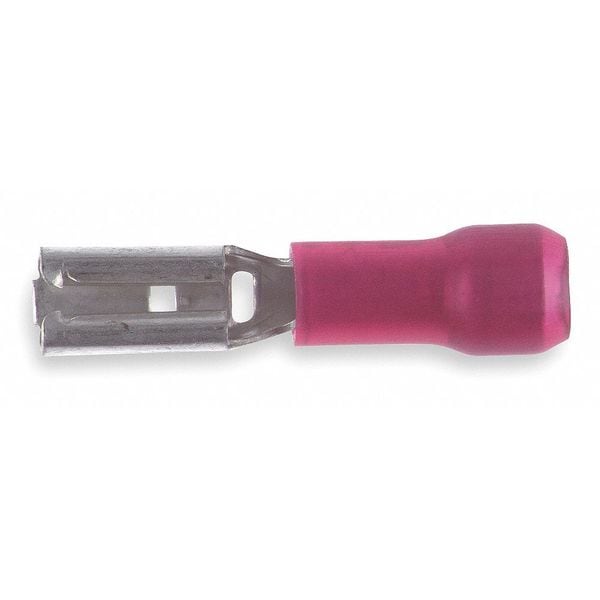

Female Disconnect, Red, 22 to 18 AWG, PK100

original price: $95.75
5% off
new price: $90.49
/pk 100, $0.90/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Material Brass
  • Insulation Color Red
  • Color Red
  • Connection Type Crimp
See all product information

Product Information

Dimensions

Tab Size 0.110 in x 0.032 in
Overall Length 0.75 in
Barrel Inside Dia. 0.06 in
Minimum Wire Size 22 AWG
Barrel Size Long
Barrel Inside Diameter 0.06 in
Maximum Wire Size 18 AWG
For Wire Size 18 AWG, 20 AWG, 22 AWG
Tab Width 0.11 in

Details

Item Female Disconnect
Insulation Partial
Material Brass
Insulation Color Red
Color Red
Connection Type Crimp
Wire Range 22 to 18 AWG
Insulation Type Nylon
Seam Overlapped
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Connection Material Tin-Plated Copper
Standards RoHS Compliant
Features Alternate Package Qty: RA10SK
Termination Style Crimp
Contact Finish Tin
Seam Style Overlapped
Insulation Material Nylon
RoHS Compliant Yes
Barrel Style Funnel Entry
UL 94 Flammability Rating Not Rated
Terminal Type Socket
Terminal Types Female Socket
Contact Material Copper
Tab Thickness 0.032 in
Maximum Voltage 600 V
Insulation Coverage Partial Coverage
Maximum Operating Temperature 221 Degrees F
Finish Tin Plated
Type Nylon Insulated Female Disconnect
AWG-range 22-18
Material insulation PA

Description

Female Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.11 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant Yes, Seam Style Overlapped, Barrel Inside Diameter 0.06 in, Barrel Size Long
