  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

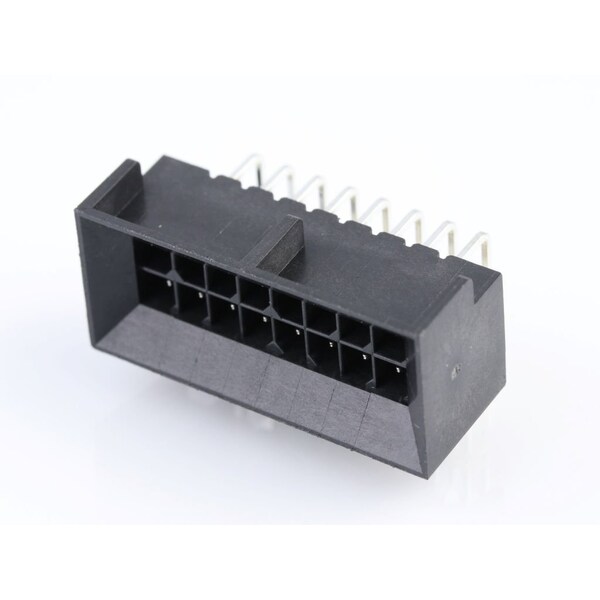

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle 444281605 - main

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 444281605

  • Zoro # G005910578

product price: $5.99
/ea
Sold in multiples of 15 for $89.85

Key Features

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444281605
Zoro #
G005910578
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
3 mm
Features
Surface Mount Compatible
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Number of Contacts
16
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Current Rating
8.5 A
Terminal Finish
Tin Plated
Product Name
Micro-Fit BMI
Durability (mating cycles max)
30
Circuits (Loaded)
16
Polarized to PCB
Yes
Material - Resin
Nylon
Plating min - Mating
0.381µm
Max-Temp
260
CSA
LR19980
Guide to Mating Part
No
First Mate / Last Break
No
Orientation
Right Angle
Stackable
No
Glow-Wire Capable
No
Lock to Mating Part
Yes
Keying to Mating Part
None
Material - Plating Mating
Gold
Max-Cycle
1
Current - Maximum per Contact
8.5A
PCB Retention
None
Shrouded
Fully
Material - Metal
Brass
PCB Locator
Yes
Max-Duration
5
Flammability
94V-0
UL
E29179
Pitch - Mating Interface
3.00mm
Breakaway
No
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Header
Material - Plating Termination
Tin
