  5. Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle

This item is Discontinued.

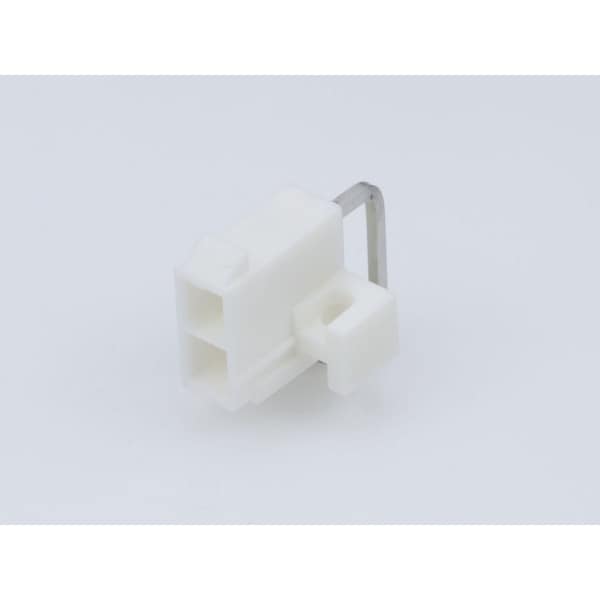

Molex Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle 39291027

Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 39291027
  • Zoro # G405910550
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
39291027
Zoro #
G405910550
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Max. Temp.
260°C
Material
Nylon
Terminal Type
Through Hole
Contact Finish
Matte Tin Plated
Terminal Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
2
Current Rating
13 A
PCB Locator
Yes
Max-Duration
5
PCB Retention
Yes
Orientation
Right Angle
Keying to Mating Part
None
Guide to Mating Part
No
Pitch - Mating Interface
4.20mm
Material - Plating Termination
Matte Tin
Stackable
No
Durability (mating cycles max)
30
Glow-Wire Capable
No
Breakaway
No
Product Name
Mini-Fit Jr.
Lock to Mating Part
Yes
Shrouded
Fully
Material - Resin
Nylon
Component Type
PCB Header
Polarized to PCB
Yes
First Mate / Last Break
No
Current - Maximum per Contact
13.0A
UL
E29179
Temperature Range - Operating
-40° to +105°C
Flammability
94V-0
Material - Metal
Brass
Max-Cycle
1
Plating min - Mating
2.540µm
Material - Plating Mating
Matte Tin
Circuits (Loaded)
2
Polarized to Mating Part
Yes
CSA
LR19980
Max-Temp
260
