  9. Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle

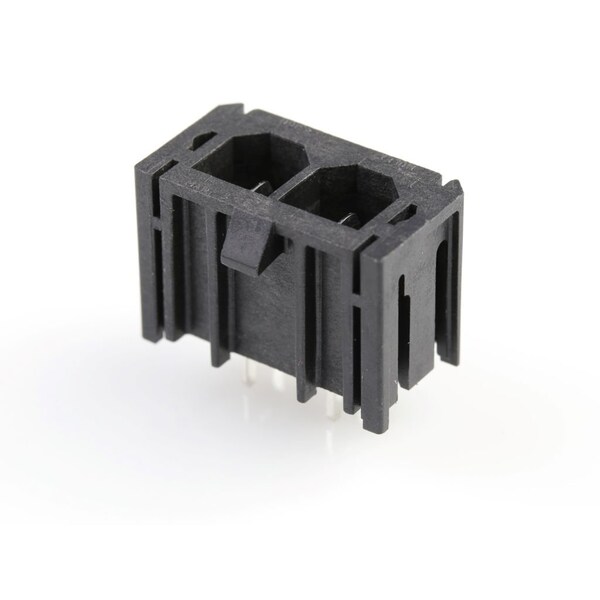

Molex Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle 431600302 - main

Rectangular Power Connector, 2 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 431600302

  • Zoro # G105910478

product price: $0.99
/ea
Sold in multiples of 85 for $84.15

Key Features

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
431600302
Zoro #
G105910478
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.889 µm
PC Tail Length
5.33mm
PCB Thickness - Recommended
2.40mm

Details

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Hole Center to Center
7.5 mm
Terminal Type
Through Hole
Max. Temp.
235°C
Features
Glow-Wire Capable
Material
High Temperature Thermoplastic
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Number of Contacts
2
Flammability Rating
UL 94V-0
Current Rating
18 A
Breakaway
No
Max-Duration
5
Plating min - Mating
0.889µm
Glow-Wire Capable
Yes
Temperature Range - Operating
-40° to +75°C
Material - Metal
Brass
Durability (mating cycles max)
25
Stackable
No
Max-Temp
235
Current - Maximum per Contact
18.0A
Orientation
Vertical
Pitch - Mating Interface
7.50mm
UL
E29179
Component Type
PCB Header
Material - Plating Termination
Tin
First Mate / Last Break
No
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
2
Guide to Mating Part
No
Product Name
Sabre
Polarized to Mating Part
Yes
CSA
LR19980
Material - Plating Mating
Tin
Keying to Mating Part
Yes
PCB Locator
Yes
Polarized to PCB
Yes
Lock to Mating Part
Yes
Shrouded
Fully
Flammability
94V-0
