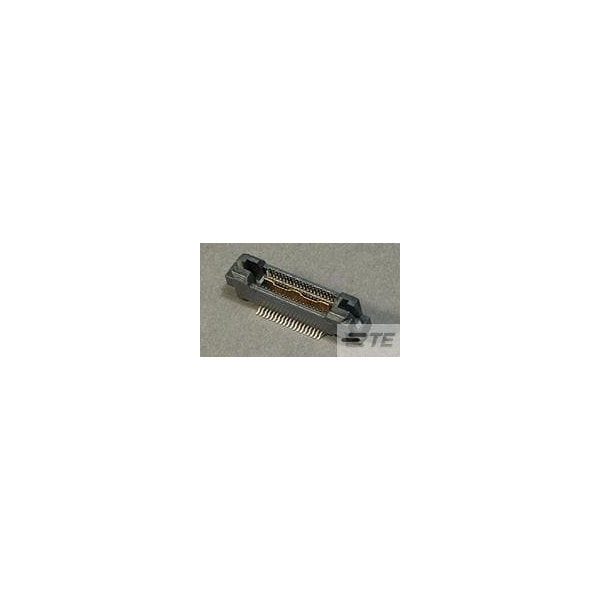

Te Connectivity MICT 260 PLUG 38 ASSY PDNI 767056-1 - main

MICT 260 PLUG 38 ASSY PDNI

  • Mfr # 767056-1

  • Zoro # G000946831

product price:  $23.15
/ea
Sold in multiples of 21 for $486.15

Key Features

Insulation Material
Liquid Crystal Polymer
Application
Signal
Current
11.5 A
Series
Mictor
Standards
CSA Certified; UL E28476; UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
767056-1
Zoro #
G000946831
UPC #
-
Country of Origin
United States

Dimensions

Width
0.208 in
Height
6.5278 mm
Length
1 in
Contact Plating Thickness
0.12 µm

Details

Item
PCB Mount Header
Insulation Material
Liquid Crystal Polymer
Application
Signal
Current
11.5 A
Series
Mictor
Standards
CSA Certified; UL E28476; UL Listed
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Copper Alloy
Hole Center to Center
0.64 mm
Material
Liquid Crystal Polymer
Max. Temp.
125°C
For Use With
Receptacle Assembly
Terminal Type
Hybrid Surface Mount
Current Rating
11.5 A
Contact Type
Pin
Number of Contacts
38
Number of Rows
2
Terminal Finish
Tin-Lead
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
