  9. Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Plug

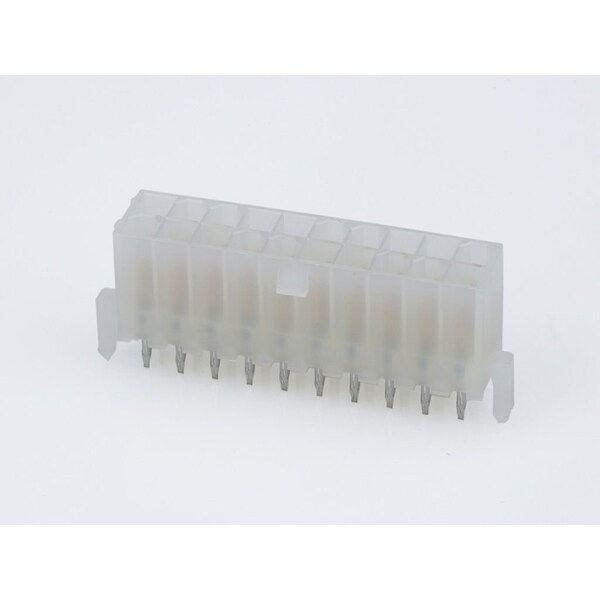

Molex Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Plug 39299204 - main

Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 39299204

  • Zoro # G005910349

product price: $7.15
/ea
Sold in multiples of 15 for $107.25

Key Features

Color
Natural
Number of Rows
2
Series
5566
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39299204
Zoro #
G005910349
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Natural
Number of Rows
2
Series
5566
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Hole Center to Center
4.2 mm
Standards
CSA Certified; UL E29179
Max. Temp.
240°C
Terminal Type
Through Hole
Terminal Finish
Matte Tin Plated
Number of Contacts
20
Contact Finish
Gold Plated
Flammability Rating
UL 94V-2
Current Rating
9 A
Max-Duration
5
Lock to Mating Part
Yes
Max-Cycle
1
Current - Maximum per Contact
9.0A
Stackable
No
Shrouded
Fully
Polarized to PCB
Yes
Keying to Mating Part
None
Breakaway
No
Plating min - Mating
0.762µm
Circuits (Loaded)
20
Material - Resin
Nylon
Polarized to Mating Part
Yes
Durability (mating cycles max)
30
Component Type
PCB Header
Orientation
Vertical
Max-Temp
240
Material - Plating Mating
Gold
UL
E29179
Product Name
Mini-Fit Jr.
Guide to Mating Part
No
First Mate / Last Break
No
PCB Retention
Yes
CSA
LR19980
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
4.20mm
Material - Metal
Brass
PCB Locator
Yes
Material - Plating Termination
Matte Tin
Flammability
94V-2
