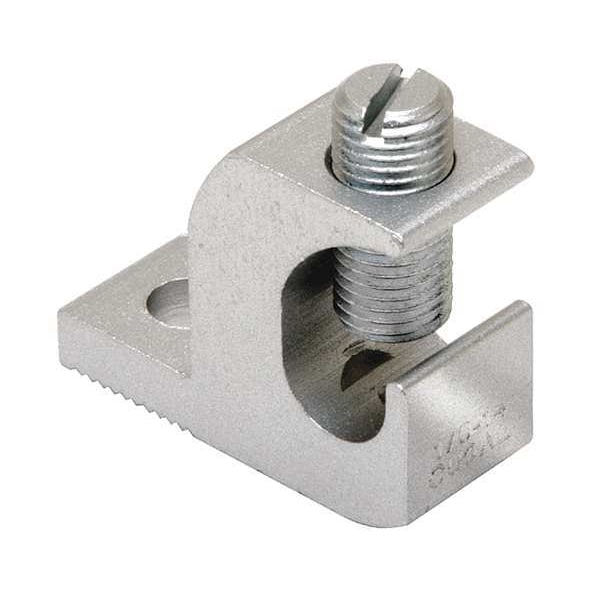

Mechanical Lug, 1 Conductor, 7/16 in Stud, Aluminum

  • Mfr # BGBL250

  • Zoro # G4683043

product price:  $11.29
/ea

Key Features

Connector Type
Lay-In Lug
For Conductor Material
Aluminum, Copper
Number of Conductors
1
Number of Holes
1
For Stud Size
7/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BGBL250
Zoro #
G4683043
UPC #
781810558959
Country of Origin
Canada

Dimensions

For Stud Size
7/16 in
Hole Diameter
0.33 in
Tongue Width
0.88 in
Width
1.79 in
Length
2.2 in
Max. Conductor Size
250 kcmil Stranded, 4/0 AWG Solid
Min. Conductor Size
6 AWG Stranded/Solid
Stud Size
7/16 in
Length (Straight Wireway)
2.2 in
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Thickness
0.25 in
Overall Depth
13/16 in
Tongue Length
1.18 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Overall Width
1.79 in
Overall Length
2.2 in
Dimension - L Length Overall mm
56 mm
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Hex Size
45062
Dimension - Height fraction
1-4/5 in
Dimension - Length Overall inch
2.20 in
Conductor - AL Str Size Range
6 AWG-250 kcmil
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - N inch
0.4 in
Conductor - Copper Solid Size Range
6 AWG-4/0 AWG
Conductor - Copper Solid Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Hole Size mm
8 mm
Dimension - D inch
1.18 in
Dimension - Pad Width inch
0.80 in
Dimension - Hole Size inch
0.33 in
Dimension - Height inch
1.79 in
Conductor - Copper Str Size Range
6 AWG-250 kcmil

Details

Item
Mechanical Lug
Connector Type
Lay-In Lug
For Conductor Material
Aluminum, Copper
Number of Conductors
1
Number of Holes
1
Body Material
Aluminum
Contact Finish
Tin
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
CSA Certified, UL Listed
Material
Tin-Plated Aluminum
No. of Conductors
1
Head Style
Hex
Screw Material
Steel
Torque
180 in-lb
Screw Finish
Zinc Plated
Special Features
Easy Installation, Provides Low Contact Resistance
Compatible with Product Type
Aluminum Cable, Copper Cable
Type
BGBL, Lay-In
UL Listed
Yes
Installation Torque Recommended in-lb
180 LBS/in
Conductor Type
AL C Str-SizeCU C Str-SizeCU C Solid-Size
Trade Name
QIKLUGâ„¢
Plating Type
Tin
Material Type - Screw
Steel - Zinc Plated
Certification - CSA Approved
Yes
Industry Standard(s)
UL468A-468B
Plated
Y
Temperature Rating
194
Physical Attribute - Screw Type
Allen
Application
For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
Hole Spacing
0.8 in
Number of Terminations
1

Description

Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 7/16 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.33 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 1.18 in, Tongue Width 0.88 in, Tongue Thickness 0.25 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
