  5. Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle

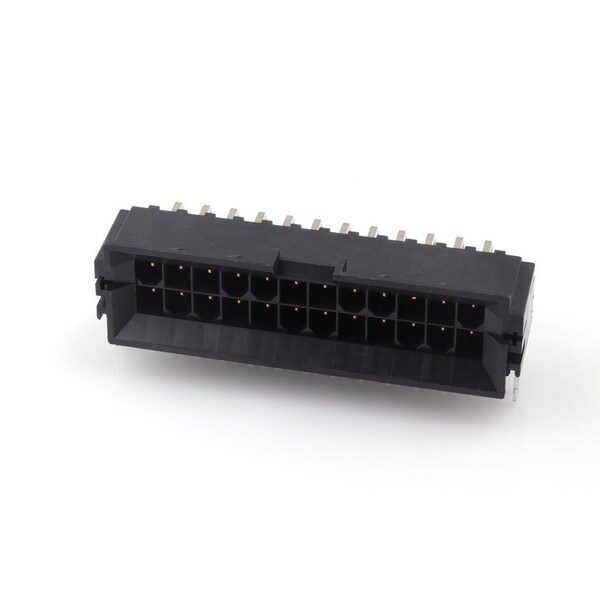

Molex Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle 438100022 - main

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 438100022

  • Zoro # G305910094

product price:  $20.35
/ea
Sold in multiples of 4 for $81.40

Key Features

Color
Black
Number of Rows
2
Series
43810
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
438100022
Zoro #
G305910094
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.12mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
43810
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Features
Surface Mount Compatible
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Terminal Finish
Tin Plated
Number of Contacts
24
Current Rating
13 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Max-Temp
260
Flammability
94V-0
Material - Plating Termination
Tin
CSA
LR19980
Voltage - Maximum
600V AC (RMS)/DC
Material - Plating Mating
Gold
Current - Maximum per Contact
13.0A
Polarized to Mating Part
Yes
Shrouded
Fully
Max-Cycle
1
PCB Retention
Yes
Polarized to PCB
Yes
Glow-Wire Capable
No
PCB Locator
No
Max-Duration
5
Temperature Range - Operating
-40° to +105°C
Breakaway
No
Circuits (Loaded)
24
Product Name
Mini-Fit BMI
Component Type
PCB Header
Plating min - Mating
0.762µm
Pitch - Mating Interface
4.20mm
Material - Metal
Brass
Stackable
No
Orientation
Right Angle
Durability (mating cycles max)
30
UL
E29179
Material - Resin
High Temperature Thermoplastic
