Shop MERSEN

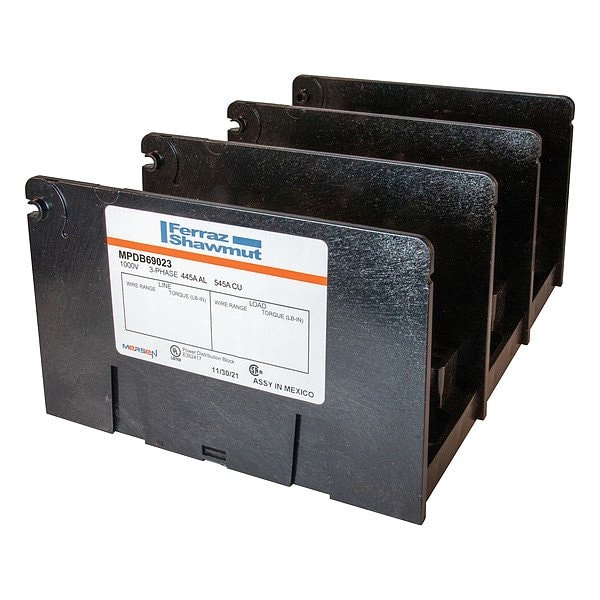

PowerDistributionBlock, 545A, 1000V, 3Poles

  • Mfr # MPDB69023

  • Zoro # G623720672

product price:
$
192.99
/ea
Free Shipping & Returns

Key Features

For Load Copper Wire Size - Minimum
6 AWG
Load Connections/Pole
2
Power Distribution Block Design
Open
For Load Aluminum Wire Size - Minimum
350 kcmil
Line Connections/Pole
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MPDB69023
Zoro #
G623720672
UPC #
0782001455385
Country of Origin
Mexico

Dimensions

For Load Copper Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Minimum
350 kcmil
For Line Copper Wire Size - Minimum
250 kcmil
For Line Copper Wire Size - Maximum
1000 kcmil
Overall Depth
90.2 mm
Overall Length
144.8 mm
For Load Copper Wire Size - Maximum
350 kcmil
For Line Aluminum Wire Size - Maximum
250 kcmil
For Line Aluminum Wire Size - Minimum
1000 kcmil
Overall Width
200.4 mm
Wire Rope Length
144.8 mm
Length
144.8 mm

Details

Load Connections/Pole
2
Power Distribution Block Design
Open
Line Connections/Pole
1
Line Side Connection Type
Lug
Secondary Wire Range
350-#6
Maximum Current - Aluminum Conductor
445 A
UL 94 Flammability Rating
V-0
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Maximum Voltage
1,000 V
Number of Poles
3
Maximum Current - Copper Conductor
545 A
For Conductor Material
Aluminum, Copper
Item
Power Distribution Block
Standards
CSA, RoHS, UL, UL 1953
Load Side Connection Type
Lug
Housing Material
Glass Filled Polycarbonate
Terminal Material
Aluminum
Primary Wire Range
1000-250

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 250 kcmil, For Line Copper Wire Size - Maximum 1000 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 545 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 3
