  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

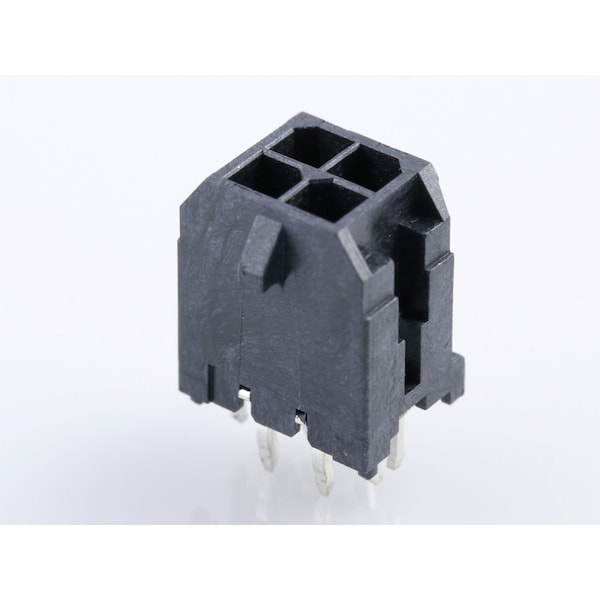

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 430450424 - main

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 430450424

  • Zoro # G505910313

product price: $0.99
/ea
Sold in multiples of 95 for $94.05

Key Features

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430450424
Zoro #
G505910313
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.254 µm
Mated Height
17.64mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
3 mm
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole - Kinked Pin
Features
Glow-Wire Capable; Surface Mount Compatible
Max. Temp.
260°C
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Number of Contacts
4
Glow-Wire Capable
Yes
Circuits (Loaded)
4
Flammability
94V-0
Pitch - Mating Interface
3.00mm
PCB Locator
Yes
Max-Cycle
3
Max-Duration
30
Stackable
No
Component Type
PCB Header
Durability (mating cycles max)
30
PCB Retention
Yes
Polarized to PCB
Yes
CSA
LR19980
UL
E29179
Breakaway
No
Max-Temp
260
Material - Plating Mating
Tin
Current - Maximum per Contact
8.5A
Material - Plating Termination
Tin
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.254µm
Product Name
Micro-Fit 3.0
Material - Metal
Brass
