  9. Rectangular Power Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.165 Inch Pitch, Solder

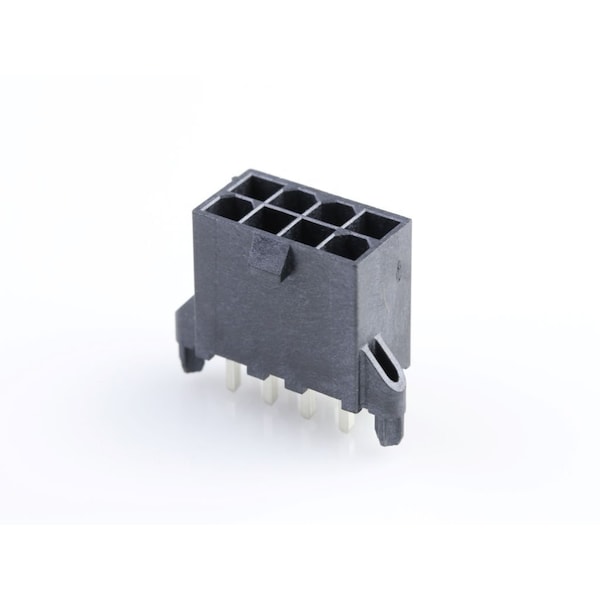

Molex Rectangular Power Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.165 Inch Pitch, Solder 462070008 - main

Rectangular Power Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.165 Inch Pitch, Solder

  • Mfr # 462070008

  • Zoro # G505910351

product price: $2.29
/ea
Sold in multiples of 40 for $91.60

Key Features

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
462070008
Zoro #
G505910351
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.57mm
PC Tail Length
3.66mm

Details

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
4.2 mm
Max. Temp.
265°C
Contact Finish
Matte Tin Plated
Number of Contacts
8
Flammability Rating
UL 94V-0
Terminal Finish
Matte Tin Plated
Current Rating
13 A
Polarized to PCB
Yes
Orientation
Vertical
Max-Duration
30
Voltage - Maximum
600V AC (RMS)/DC
First Mate / Last Break
No
Shrouded
Fully
Stackable
No
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Material - Resin
High Temperature Thermoplastic
Durability (mating cycles max)
100
Max-Cycle
3
Pitch - Mating Interface
4.20mm
Guide to Mating Part
No
Material - Plating Termination
Matte Tin
Breakaway
No
Circuits (Loaded)
8
UL
E29179
Current - Maximum per Contact
13.0A
Flammability
94V-0
Polarized to Mating Part
Yes
Glow-Wire Capable
Yes
Product Name
Mini-Fit Jr.
PCB Retention
Yes
CSA
LR19980
Material - Plating Mating
Matte Tin
Max-Temp
265
PCB Locator
Yes
Material - Metal
Brass
Component Type
PCB Header

Description

Rectangular Power Connector, 8 Contact(S), 2 Row(S), Male, Straight, 0.165 Inch Pitch, Solder Terminal, Locking, Black Insulator
