  11. Male Disconnect, Red, 22-18AWG, PK100
Shop All Wire Disconnects
Sta-Kon

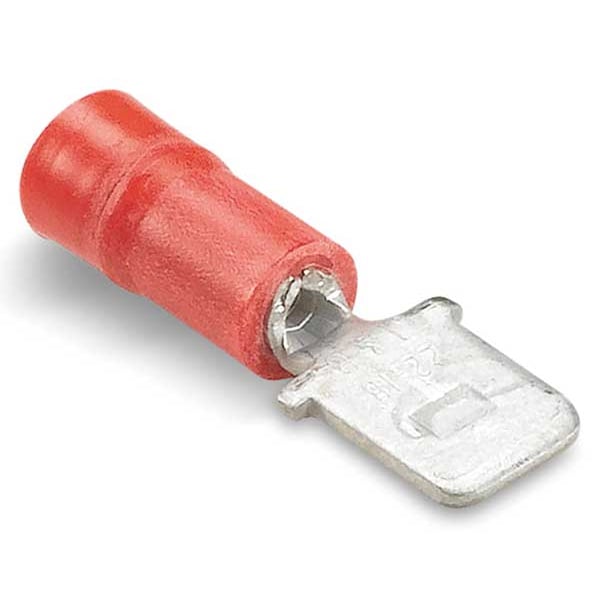

Male Disconnect, Red, 22-18AWG, PK100

product price: $41.69
/pk 100, $0.42/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Male - 250 Series
  • Insulation Partial
  • Material Brass
  • Insulation Color Red
  • Color Red
See all product information

Product Information

Dimensions

Overall Length 0.95 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.06 in
Minimum Wire Size 22 AWG
Barrel Size Long
For Wire Size 18 AWG, 20 AWG, 22 AWG
Barrel Inside Diameter 0.06 in
Maximum Wire Size 18 AWG
Tab Width 0.25 in

Details

Item Male Disconnect
Style Male - 250 Series
Insulation Partial
Material Brass
Insulation Color Red
Color Red
Insulation Type Vinyl
Wire Range 22 to 18 AWG
Connection Type Crimp
Seam Brazed
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Standards UL E66716
Connection Material Brass
Features Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA2517
Maximum Operating Temperature 221 Degrees F
Disconnect Style Tab
Contact Material Copper
Tab Thickness 0.032 in
Maximum Voltage 600 V
Termination Style Crimp
Insulation Material Vinyl
RoHS Compliant No
Barrel Style Funnel Entry
Seam Style Brazed
UL 94 Flammability Rating Not Rated
Contact Finish Tin
Insulation Coverage Partial Coverage
Terminal Type Tab
Terminal Types Male Tab
Temperature Rating 105°C
Stock Thickness 0.03
Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003
Flammability Rating UL 94 V-0
Recommended Tool ERG4001
Maximum Insulation (inches) 0.17
A (inches) 0.95
Voltage Rating 600V
Finish Electro Tin-Plated
Terminal Series RA
AWG-range 22-18
Material insulation Polyvinyl chloride (PVC)
Type Vinyl Insulated Male Disconnect

Description

Male Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
