  5. Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Plug

This item is Discontinued.

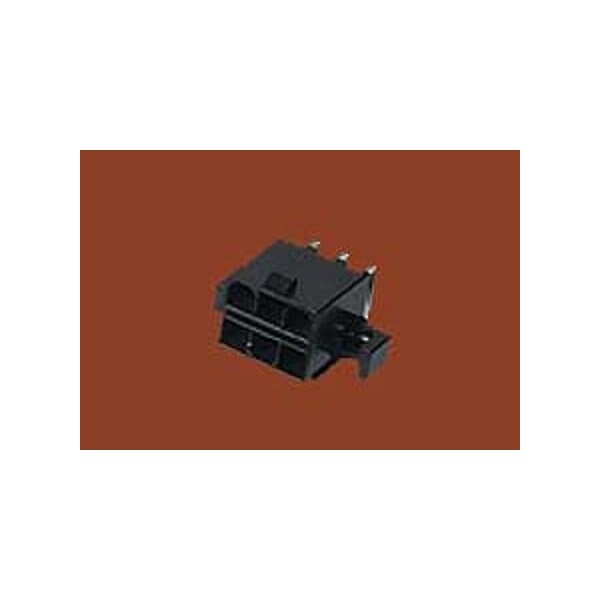

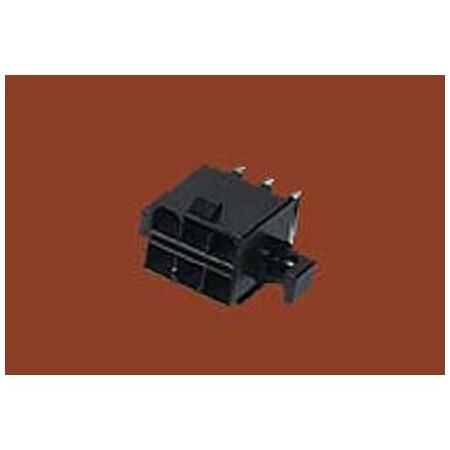

Molex Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Plug 15978087

Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Plug (Discontinued)

  • Mfr # 15978087
  • Zoro # G105910294
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
15978087
Zoro #
G105910294
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
4.10mm
PCB Thickness - Recommended
1.80mm

Details

Number of Rows
2
Series
30070
Application
Power, Wire-to-Board
Current - Maximum per Contact
13.0A
Material - Resin
Polyester
Flammability
94V-0
Durability (mating cycles max)
30
Stackable
No
Voltage - Maximum
600V
Breakaway
No
CSA
LR19980
Material - Plating Mating
Gold
Material - Metal
Brass
Max-Duration
5
Color - Resin
Black
Pitch - Mating Interface
4.20mm
Guide to Mating Part
No
Lock to Mating Part
Yes
Shrouded
Partial
Material - Plating Termination
Gold
Temperature Range - Operating
-40° to +105°C
Keying to Mating Part
None
Termination Interface Style
Through Hole
Polarized to Mating Part
Yes
First Mate / Last Break
No
Polarized to PCB
Yes
PCB Retention
Yes
UL
E29179
Max-Temp
260
Circuits (Loaded)
8
Orientation
Right Angle
Component Type
PCB Header
Max-Cycle
1
Glow-Wire Capable
No
Product Name
Mini-Fit TPA
PCB Locator
Yes
