Shop MOLEX

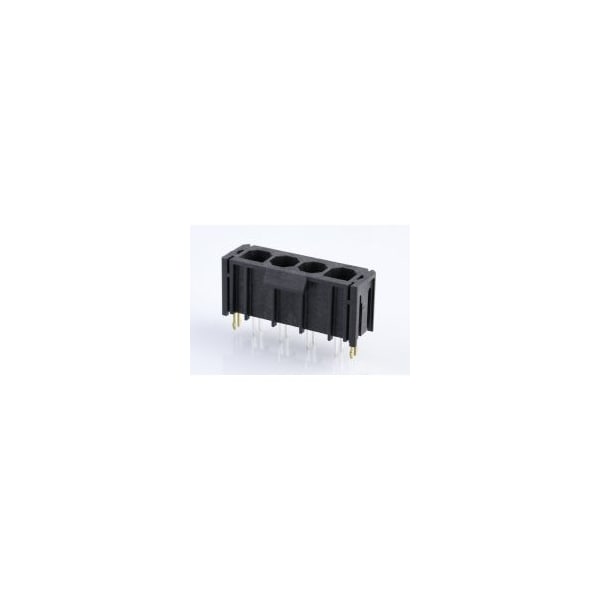

Sabre 4Ckt Ver V0 Hdr w/oLk LgTail

  • Mfr # 43160-4304

  • Zoro # G4028890

product price:  $2.15
/ea
Sold in multiples of 55 for $118.25

Key Features

Polarized to PCB
Yes
Circuits (maximum)
4
Glow-Wire Capable
Yes
Orientation
Vertical
Material - Resin
High Temperature Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43160-4304
Zoro #
G4028890
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
5.33mm

Details

Polarized to PCB
Yes
Circuits (maximum)
4
Glow-Wire Capable
Yes
Orientation
Vertical
Material - Resin
High Temperature Thermoplastic
Color - Resin
Black
Pitch - Termination Interface
7.50mm
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
25
Number of Rows
1
Max. Cycles at Max. Process Temperature
1
Current - Maximum per Contact
18.0A
Temperature Range - Operating
-40° to +75°C
Material - Metal
Brass
Process Temperature max. C
235
Termination Interface: Style
Through Hole
Pitch - Mating Interface
7.50mm
Keying to Mating Part
Yes
Flammability
94V-0
Plating min - Termination
0.889µm
Lock to Mating Part
Yes
CSA
LR19980
Shrouded
Fully
Circuits (Loaded)
4
Voltage - Maximum
600V
Plating min - Mating
0.889µm
UL
E29179
Material - Plating Mating
Tin
PCB Locator
Yes
Polarized to Mating Part
Yes
PCB Retention
Yes
Material - Plating Termination
Tin
