Shop MOLEX

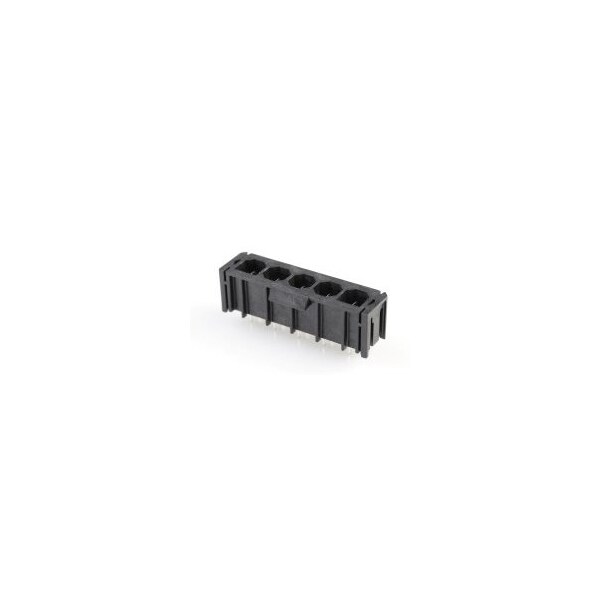

Sabre 5Ckt Ver V0 Hdr w/oLk LgTail

  • Mfr # 43160-0305
  • Zoro # G4048944
product price:
$
1.49
/ea
Sold in multiples of 50 for $74.50

Key Features

UL
E29179
Material - Metal
Brass
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
600V
Circuits (Loaded)
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43160-0305
Zoro #
G4048944
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
5.33mm

Details

UL
E29179
Material - Metal
Brass
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
600V
Circuits (Loaded)
5
PCB Locator
Yes
Material - Plating Termination
Tin
Circuits (maximum)
5
Pitch - Mating Interface
7.50mm
Glow-Wire Capable
Yes
CSA
LR19980
Number of Rows
1
Plating min - Termination
0.889µm
Temperature Range - Operating
-40° to +75°C
Material - Resin
High Temperature Thermoplastic
Process Temperature max. C
235
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Orientation
Vertical
Plating min - Mating
0.889µm
Termination Interface: Style
Through Hole
Flammability
94V-0
Color - Resin
Black
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Pitch - Termination Interface
7.50mm
Current - Maximum per Contact
18.0A
Duration at Max. Process Temperature (seconds)
5
Keying to Mating Part
Yes
Shrouded
Fully
Durability (mating cycles max)
25
