Shop LEGRAND

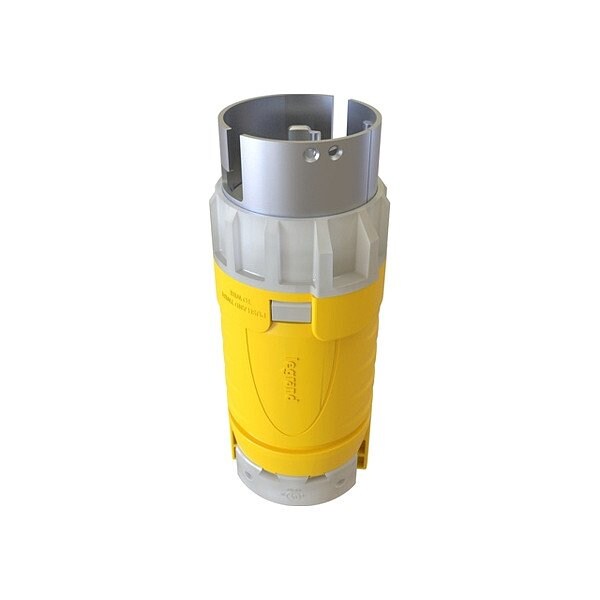

Locking Plug, 50 A, Yellow, Nylon

  • Mfr # CR6361C

  • Zoro # G322784067

product price:
$
254.99
/ea
Free Shipping & Returns

Key Features

Series
TURNLOK(R)
Power and Ground Indicating Light
No
Current Rating
50 A
UL 94 Flammability Rating
V-2
Standards
cULus File No.E146159, RoHS, UL 498
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CR6361C
Zoro #
G322784067
UPC #
785007442625
Country of Origin
Mexico

Dimensions

Wire Rope Length
6.38 in
For Minimum Cable Diameter
0.68 in
For Maximum Cable Diameter
1.125 in
Overall Length
6.38 in

Details

Series
TURNLOK(R)
Power and Ground Indicating Light
No
Current Rating
50 A
UL 94 Flammability Rating
V-2
Standards
cULus File No.E146159, RoHS, UL 498
Housing Color
Yellow
Resistance Properties
Corrosion Resistant, Impact Resistant
Housing Material
Nylon
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees C
Phase
Single
Wire Connection Type
Screw Terminals
Shrouded
Yes
Number of Poles
2
Midget Locking
No
Features
All Screws are on the Same Plane for Accurate, Streamlined Installation, Saving Time on the Job, An Adjustable Cord Clamp is Located Outside the Back Body for Greater Flexibility to Accommodate a Wider Range of Cord Sizes, Clamp Screws are on the Same Plane for Faster Installation, Impact- and Corrosion-Resistant Durable Nylon 66 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise and Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, Longer Screws are Included to Adjust for Larger Cables, Newly Designed External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, No Time-Consuming Threading, Same-Plane Hex Head Terminations for Faster, Safer Installations with More Torque and Reduced Risk of Screwdriver Slips, Securing Your Installations is Easier Than Ever, The Back Body Easily Slides Onto the Device and Locks in Place with a Simple Quarter Twist, Visible Molded NEMA Configuration and Device Rating
Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Number of Blades
3
Maximum Operating Temperature
75 Degrees C
Voltage Rating
125V AC

Description

Locking Plug, Current Rating 50 A, Housing Color Yellow, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.68 in, Horsepower Rating Not Applicable, IP Rating Not Applicable, Market Commercial, Industrial, Midget Locking No
