  11. Sl Positive Lock P-P 5Ckt 100Mm Sn

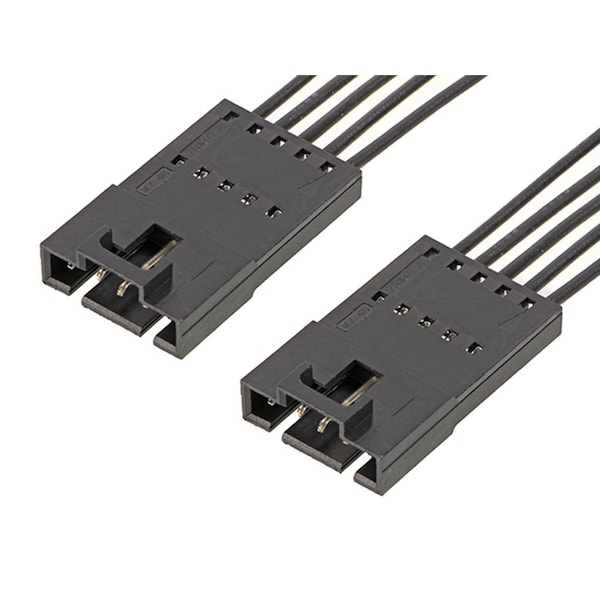

Molex Sl Positive Lock P-P 5Ckt 100Mm Sn 2162721051 - main

Sl Positive Lock P-P 5Ckt 100Mm Sn

  • Mfr # 2162721051

  • Zoro # G605789055

product price: $3.79
/ea
Sold in multiples of 20 for $75.80

Key Features

Maximum Voltage
600 V AC/DC
Current
3 A
Connector Type
Male-Male
Series
216272
Material
Polyester Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2162721051
Zoro #
G605789055
UPC #
-
Country of Origin
China

Dimensions

Length
100 mm
Max. Insulation Dia.
1.63 mm
Wire Size (AWG)
22
Wire Insulation Diameter
1.63mm max.
Cable Length
100.00mm

Details

Item
Discrete Wire Assembly
Maximum Voltage
600 V AC/DC
Current
3 A
Connector Type
Male-Male
Series
216272
Material
Polyester Alloy
Color
Black
Contact Finish
Tin Plated
Number of Contacts
5
Hole Center to Center
2.54 mm
Terminal Type
Crimp or Compression
Wire Range
22 AWG
Application
Signal, Wire-to-Wire
Number of Rows
1
Type
Discrete Wire Assembly
Current Rating
3 A
Max. Voltage
600V AC/DC
Terminal Finish
Tin Plated
Pitch - Mating Interface
2.54mm
Material - Plating Termination
Tin
Connector to Connector
SL-to-SL
Circuits (Loaded)
5
Current - Maximum per Contact
3.0A
Material - Plating Mating
Tin
Material - Metal
Phosphor Bronze
Overmolded
No
Wire/Cable Type
UL 11028
Material - Resin
Polyester Alloy
Single Ended
No
Assembly Configuration
Dual Ended Connectors
Product Name
SL
Lock to Mating Part
Yes
