  11. Ultra-Fit Sr R-R 8Ckt 600Mm Disc Sn

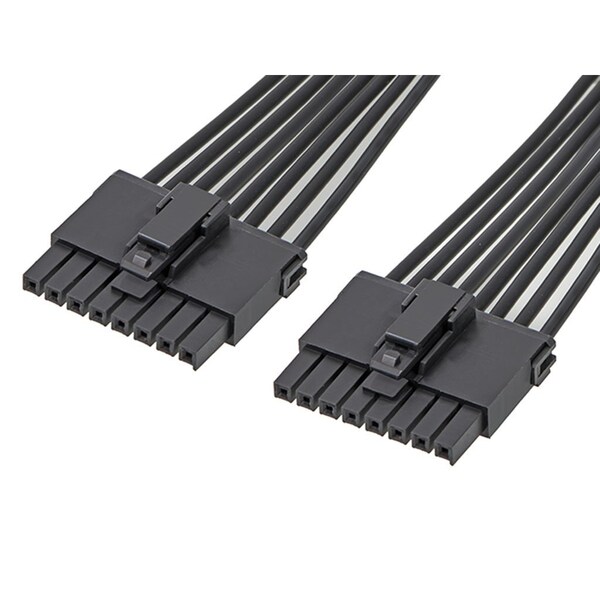

Molex Ultra-Fit Sr R-R 8Ckt 600Mm Disc Sn 2174651083 - main

Ultra-Fit Sr R-R 8Ckt 600Mm Disc Sn

  • Mfr # 2174651083

  • Zoro # G405789521

product price: $14.79
/ea
Sold in multiples of 5 for $73.95

Key Features

Maximum Voltage
600 V AC/DC
Current
14 A
Material
Nylon
Color
Black
Series
217465
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2174651083
Zoro #
G405789521
UPC #
-
Country of Origin
India

Dimensions

Length
600 mm
Max. Insulation Dia.
2.39 mm
Contact Plating Thickness
1.524 µm
Wire Size (AWG)
16
Cable Length
600.00mm
Wire Insulation Diameter
2.03-2.39mm

Details

Item
Ultra-Fit
Maximum Voltage
600 V AC/DC
Current
14 A
Material
Nylon
Color
Black
Series
217465
Connector Type
Female-Female
Insulation Material
Nylon
Contact Finish
Tin Plated
Hole Center to Center
3.5 mm
Terminal Type
Crimp or Compression
Max. Voltage
600V AC/DC
Number of Rows
1
Wire Range
16 AWG
Application
Power, Wire-to-Board
Type
Discrete Wire Assembly
Current Rating
14 A
Number of Contacts
8
Terminal Finish
Tin Plated
Material - Resin
Nylon
Material - Plating Termination
Tin
Material - Metal
High Conductivity Copper
Product Name
Ultra-Fit
Current - Maximum per Contact
14.0A
Pitch - Mating Interface
3.50mm
Wire/Cable Type
UL 1061
Overmolded
No
Connector to Connector
Ultra-Fit-to-Ultra-Fit
Plating min - Mating
1.524µm
Voltage - Maximum
600V AC (RMS)/DC
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Circuits (Loaded)
8
Single Ended
No
Material - Plating Mating
Tin
