  6. Sl Positive Lock P-P 5Ckt 150Mm Sn

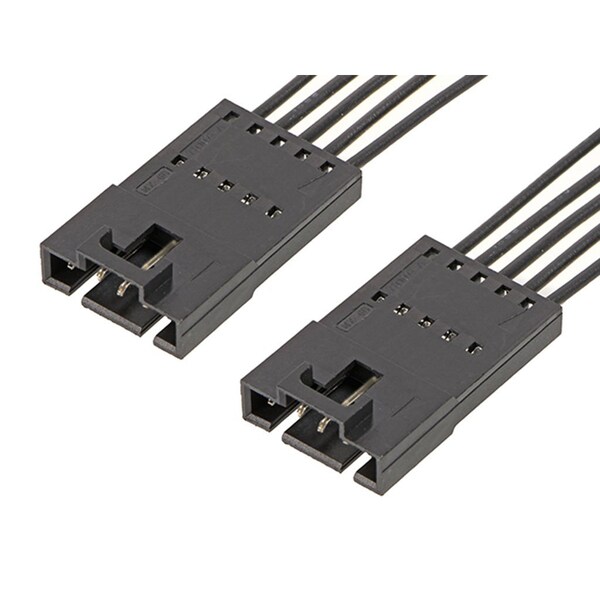

Molex Sl Positive Lock P-P 5Ckt 150Mm Sn 2162721052 - main

Sl Positive Lock P-P 5Ckt 150Mm Sn

  • Mfr # 2162721052

  • Zoro # G005789075

product price:  $4.35
/ea
Sold in multiples of 20 for $87.00

Key Features

Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Material
Polyester Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2162721052
Zoro #
G005789075
UPC #
-
Country of Origin
China

Dimensions

Length
150 mm
Max. Insulation Dia.
1.63 mm
Cable Length
150.00mm
Wire Insulation Diameter
1.63mm max.
Wire Size (AWG)
22

Details

Item
Discrete Wire Assembly
Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Material
Polyester Alloy
Series
216272
Connector Type
Male-Male
Current Rating
3 A
Number of Contacts
5
Hole Center to Center
2.54 mm
Number of Rows
1
Wire Range
22 AWG
Contact Finish
Tin Plated
Application
Signal, Wire-to-Wire
Terminal Type
Crimp or Compression
Type
Discrete Wire Assembly
Max. Voltage
600V AC/DC
Terminal Finish
Tin Plated
Material - Metal
Phosphor Bronze
Single Ended
No
Connector to Connector
SL-to-SL
Overmolded
No
Product Name
SL
Material - Resin
Polyester Alloy
Assembly Configuration
Dual Ended Connectors
Material - Plating Mating
Tin
Current - Maximum per Contact
3.0A
Circuits (Loaded)
5
Wire/Cable Type
UL 11028
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Pitch - Mating Interface
2.54mm
