Shop MOLEX

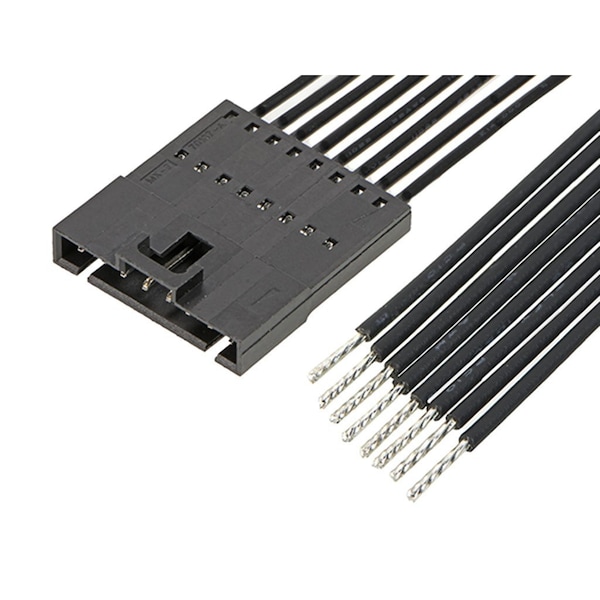

Sl Positive Lock P-S 8Ckt 100Mm Sn

  • Mfr # 2162731081

  • Zoro # G605789796

product price:
$
3.55
/ea
Sold in multiples of 20 for $71.00

Key Features

Insulation Material
Polyester Alloy
Maximum Voltage
600 V
Current
3 A
Color
Black
Series
216273
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2162731081
Zoro #
G605789796
UPC #
-
Country of Origin
India

Dimensions

Length
100 mm
Max. Insulation Dia.
1.63 mm
Wire Insulation Diameter
1.63mm max.
Cable Length
100.00mm
Wire Size (AWG)
22

Details

Item
Discrete Wire Assembly
Insulation Material
Polyester Alloy
Maximum Voltage
600 V
Current
3 A
Color
Black
Series
216273
Material
Polyester Alloy
Connector Type
Male-Pigtail
Number of Rows
1
Current Rating
3 A
Terminal Type
Crimp or Compression
Contact Finish
Tin Plated
Max. Voltage
600V AC/DC
Application
Signal, Wire-to-Wire
Type
Male-Pigtail
Features
Single Ended
Wire Range
22 AWG
Hole Center to Center
2.54 mm
Number of Contacts
8
Terminal Finish
Tin Plated
Lock to Mating Part
Yes
Current - Maximum per Contact
3.0A
Overmolded
No
Wire/Cable Type
UL 11028
Assembly Configuration
Single Ended Connector
Single Ended
Yes
Connector to Connector
SL-to-Pigtail
Material - Metal
Phosphor Bronze
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Circuits (Loaded)
8
Pitch - Mating Interface
2.54mm
Material - Resin
Polyester Alloy
Product Name
SL
