  11. SL R/A Latch Hdr /Split Pg 30 SAu 8Ckt

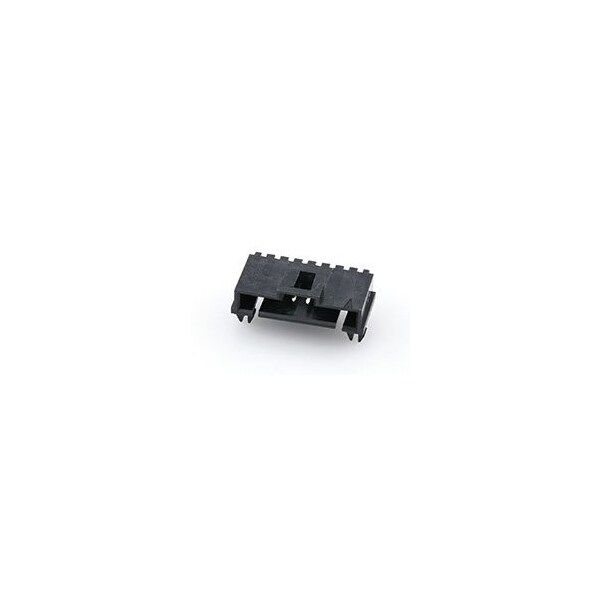

Molex SL R/A Latch Hdr /Split Pg 30 SAu 8Ckt 70551-0077 - main

SL R/A Latch Hdr /Split Pg 30 SAu 8Ckt

  • Mfr # 70551-0077

  • Zoro # G7771002

original price: $2.15
9% off
new price: $1.95
/ea
Sold in multiples of 44 for $85.80

Key Features

Current - Maximum per Contact
3.0A
Material - Metal
Brass, Phosphor Bronze
Flammability
94V-0
Shrouded
Fully
Circuits (maximum)
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70551-0077
Zoro #
G7771002
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

Current - Maximum per Contact
3.0A
Material - Metal
Brass, Phosphor Bronze
Flammability
94V-0
Shrouded
Fully
Circuits (maximum)
8
Material - Plating Termination
Tin
Number of Rows
1
Circuits (Loaded)
8
Material - Resin
High Temperature Thermoplastic
CSA
LR19980
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Color - Resin
Black
Durability (mating cycles max)
50
Plating min - Termination
1.905µm
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
Pitch - Mating Interface
2.54mm
Orientation
Right Angle
Termination Interface: Style
Through Hole
UL
E29179
PCB Retention
Yes
Voltage - Maximum
250V
