  11. Stacked Sfp+ 2X5 Conn Assy W/ Tin Tails

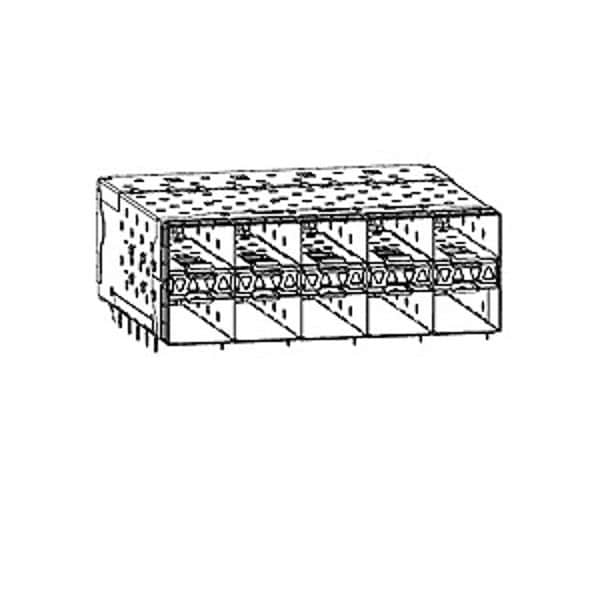

Molex Stacked Sfp+ 2X5 Conn Assy W/ Tin Tails 760475001 - main

Stacked Sfp+ 2X5 Conn Assy W/ Tin Tails

  • Mfr # 760475001

  • Zoro # G705951109

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Max. Voltage
120V AC/DC
Max. Temp.
85°C
Application
Module-to-Board
Series
76047
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760475001
Zoro #
G705951109
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
2.07mm
PCB Thickness - Recommended
1.57mm

Details

Max. Voltage
120V AC/DC
Max. Temp.
85°C
Application
Module-to-Board
Series
76047
Standards
CSA Certified; UL E29179
Hole Center to Center
0.8 mm
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Number of Ports
10
Current Rating
0.5 A
Color
Black, Clear
Connector Type
Female
Material
High Temperature Thermoplastic, Polycarbonate
Terminal Type
Through Hole - Compliant Pin
Number of Contacts
200
Flammability Rating
UL 94V-0
Number of Rows
2
CSA
LR19980
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +85°C
Flammability
94V-0
PCB Locator
Yes
Material - Metal
High Performance Alloy (HPA)
Voltage - Maximum
120V AC (RMS)/DC
Product Name
SFP Plus,SFP+
Material - Resin
High Temperature Thermoplastic, Polycarbonate
Component Type
Receptacle
Orientation
Right Angle
Lock to Mating Part
Yes
Durability (mating cycles max)
100
Keying to Mating Part
None
Circuits Detail
200
Current - Maximum per Contact
0.5A
Color - Resin
Black, Clear (Blue Tint)
Plating min - Mating
0.762µm
Shielded
Yes
Shield Type
EMI Gasket
Waterproof / Dustproof
No
Polarized to PCB
Yes
Grounding to Panel
None
UL
E29179
PCB Retention
Yes
Pitch - Mating Interface
0.80mm
Material - Plating Termination
Tin
Material - Plating Mating
Gold
