  11. Super-Sabre R/A Hdr Assy 4ckt FgrPrf

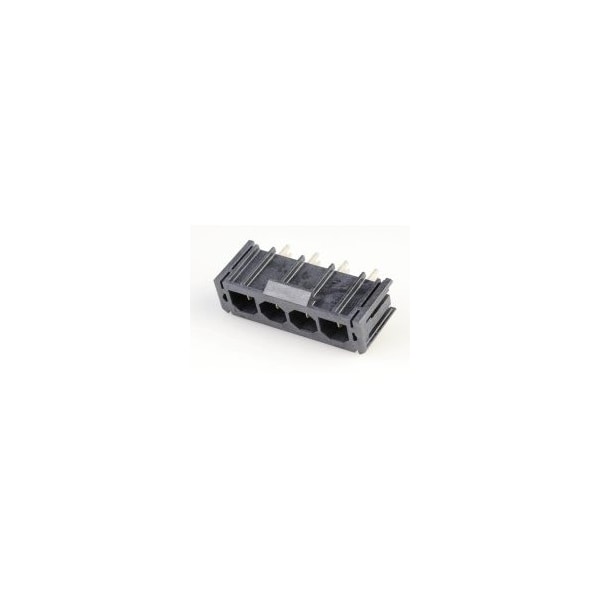

Molex Super-Sabre R/A Hdr Assy 4ckt FgrPrf 172043-0401 - main

Super-Sabre R/A Hdr Assy 4ckt FgrPrf

  • Mfr # 172043-0401

  • Zoro # G2758390

product price: $2.89
/ea
Sold in multiples of 25 for $72.25

Key Features

Flammability
94V-0
Circuits (Loaded)
4
Plating min - Termination
0.025µm
Material - Plating Mating
Silver
Orientation
Right Angle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
172043-0401
Zoro #
G2758390
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.81mm

Details

Flammability
94V-0
Circuits (Loaded)
4
Plating min - Termination
0.025µm
Material - Plating Mating
Silver
Orientation
Right Angle
Pitch - Mating Interface
7.50mm
Surface Mount Compatible (SMC)
Yes
Termination Interface: Style
Through Hole
CSA
LR19980
Plating min - Mating
0.025µm
Temperature Range - Operating
-40° to +125°C
UL
E29179
Durability (mating cycles max)
25
Max. Cycles at Max. Process Temperature
3
Material - Metal
Copper
Lock to Mating Part
Yes
Current - Maximum per Contact
30.0A per blade
Number of Rows
1
Color - Resin
Black
Process Temperature max. C
260
Glow-Wire Capable
Yes
Duration at Max. Process Temperature (seconds)
30
Voltage - Maximum
600V AC (RMS)
Material - Plating Termination
Matte Tin, Nickel
Circuits (maximum)
4
Material - Resin
High Temperature Thermoplastic
Polarized to Mating Part
Yes
