Shop MOLEX

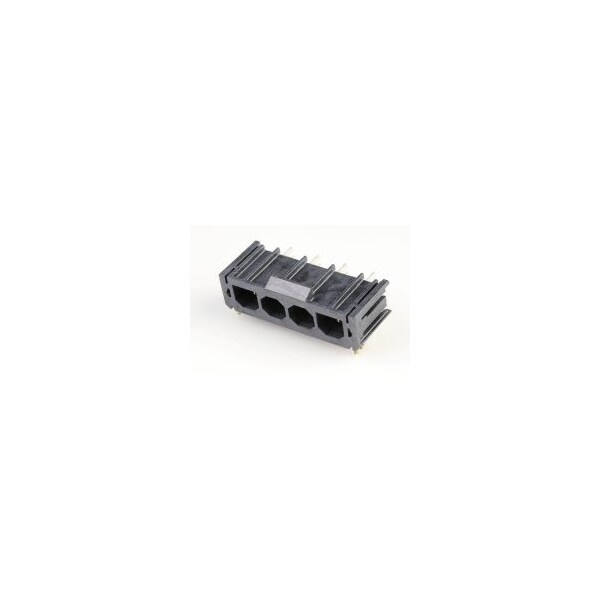

Super-Sabre R/A Hdr Assy 4ckt FgrPrf

  • Mfr # 172043-0402

  • Zoro # G2754583

product price:
$
4.59
/ea
Sold in multiples of 25 for $114.75

Key Features

Material - Metal
Copper
Material - Plating Termination
Matte Tin, Nickel
Termination Interface: Style
Through Hole
Polarized to Mating Part
Yes
Plating min - Mating
0.025µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
172043-0402
Zoro #
G2754583
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.81mm

Details

Material - Metal
Copper
Material - Plating Termination
Matte Tin, Nickel
Termination Interface: Style
Through Hole
Polarized to Mating Part
Yes
Plating min - Mating
0.025µm
CSA
LR19980
Voltage - Maximum
600V AC (RMS)
Durability (mating cycles max)
25
Duration at Max. Process Temperature (seconds)
30
Circuits (maximum)
4
Material - Plating Mating
Silver
Max. Cycles at Max. Process Temperature
3
PCB Retention
Yes
Material - Resin
High Temperature Thermoplastic
Current - Maximum per Contact
30.0A per blade
Pitch - Mating Interface
7.50mm
Plating min - Termination
0.025µm
Color - Resin
Black
Circuits (Loaded)
4
Surface Mount Compatible (SMC)
Yes
Flammability
94V-0
Orientation
Right Angle
Number of Rows
1
Process Temperature max. C
260
Temperature Range - Operating
-40° to +125°C
Lock to Mating Part
Yes
UL
E29179
Glow-Wire Capable
Yes
