  11. Telecom And Datacom Connector, 29 Contact(S), Female, Straight, Solder Terminal, Receptacle

This item is Discontinued.

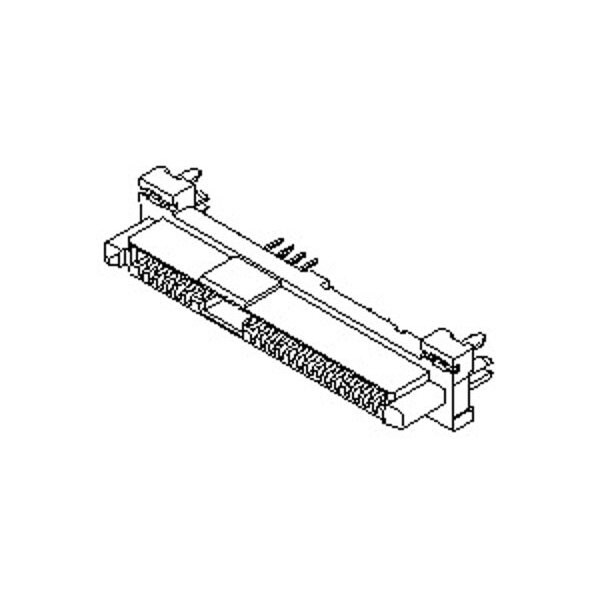

Molex Telecom And Datacom Connector, 29 Contact(S), Female, Straight, Solder Terminal, Receptacle 879700001

Telecom And Datacom Connector, 29 Contact(S), Female, Straight, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 879700001
  • Zoro # G205951098
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
879700001
Zoro #
G205951098
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
2.20mm, 2.70mm
PCB Thickness - Recommended
1.80mm

Details

Connector Type
Female
Number of Contacts
29
Max. Temp.
260°C
Max. Voltage
30V
Application
Board-to-Board
Series
87970
Standards
CSA Certified; UL E29179
Features
Surface Mount Compatible
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Shielded
No
Color
Black
Hole Center to Center
0.8 mm; 1.27 mm
Current Rating
1.5 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Number of Rows
2
Component Type
Receptacle
Product Name
SAS 6G,SAS-2
Material - Plating Mating
Gold
PCB Locator
Yes
Waterproof / Dustproof
No
CSA
LR19980
Keying to Mating Part
Yes
Panel Mount
Yes
Pitch - Mating Interface
0.80mm, 1.27mm
Polarized to PCB
Yes
Max-Cycle
1
Material - Metal
Phosphor Bronze
Plating min - Mating
0.762µm
Durability (mating cycles max)
500
Max-Temp
260
Current - Maximum per Contact
1.5A
UL
E29179
Orientation
Vertical
Lock to Mating Part
None
Material - Resin
High Temperature Thermoplastic
Flammability
94V-0
PCB Retention
Yes
Material - Plating Termination
Tin
Temperature Range - Operating
0° to +55°C
Max-Duration
10
Polarized to Mating Part
Yes
Circuits Detail
Signal 14, Power 15
