  11. Telecom And Datacom Connector, 50 Contact(S), Female, Crimp Terminal, Locking, Receptacle

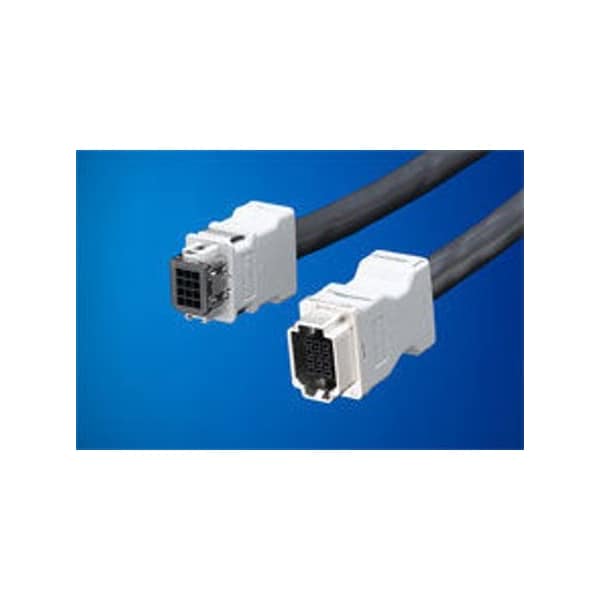

Molex Telecom And Datacom Connector, 50 Contact(S), Female, Crimp Terminal, Locking, Receptacle 512385011 - main

Telecom And Datacom Connector, 50 Contact(S), Female, Crimp Terminal, Locking, Receptacle

  • Mfr # 512385011

  • Zoro # G005951014

product price: $8.65
/ea
Sold in multiples of 10 for $86.50

Key Features

Connector Type
Receptacle
Number of Contacts
50
Max. Temp.
105°C
Max. Voltage
250V AC/DC
Application
Panel-Mount, Wire-to-Wire
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
512385011
Zoro #
G005951014
UPC #
-
Country of Origin
Japan

Details

Connector Type
Receptacle
Number of Contacts
50
Max. Temp.
105°C
Max. Voltage
250V AC/DC
Application
Panel-Mount, Wire-to-Wire
Series
51238
Standards
CSA Certified; UL E29179
Material
Polyester
Color
Gray
Shielded
No
Hole Center to Center
3 mm
Flammability Rating
UL 94V-0
Current Rating
1.5 A; 1 A; 2.5 A; 2 A
Number of Rows
10
UL
E29179
Panel Mount
Front, Rear
Flammability
94V-0
PCB Locator
No
CSA
LR19980
Orientation
Vertical
Circuits (Loaded)
50
Voltage - Maximum
250V AC (RMS)/DC
Durability (mating cycles max)
100
Material - Resin
Polyester
Pitch - Mating Interface
3.00mm
Temperature Range - Operating
-40° to +105°C
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Product Name
CRC
Polarized to Mating Part
Yes
Component Type
Housing
Current - Maximum per Contact
1.5A, 1.0A, 2.5A, 2.0A
Material - Metal
Stainless Steel
Waterproof / Dustproof
No
