Shop MOLEX

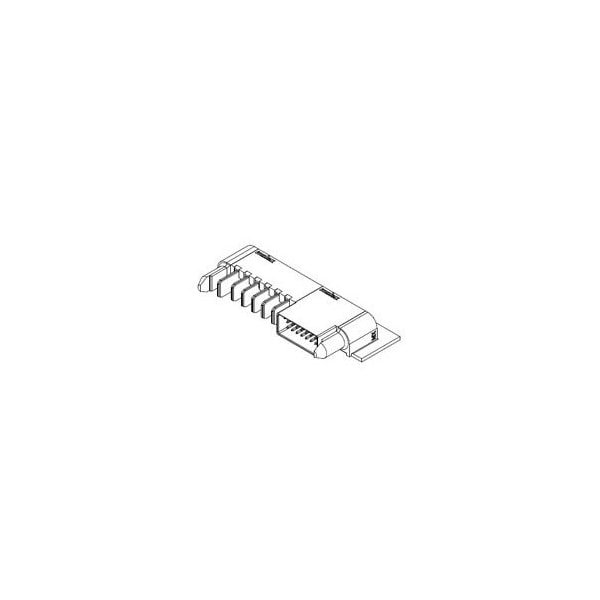

TEN60 RA PLUG ASSY

  • Mfr # 46437-3005

  • Zoro # G2078830

product price:
$
10.29
/ea
Sold in multiples of 10 for $102.90

Key Features

PC Tail Length
2.84mm
Circuits (maximum)
30
Temperature Range - Operating
-40° to +105°C
Orientation
Right Angle
Material - Metal
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
46437-3005
Zoro #
G2078830
UPC #
-
Country of Origin
Singapore

Dimensions

PC Tail Length
2.84mm
Mated Height
18.00mm
PCB Thickness - Recommended
1.58mm

Details

Circuits (maximum)
30
Temperature Range - Operating
-40° to +105°C
Orientation
Right Angle
Material - Metal
Copper
Number of Rows
1, 3
Termination Interface: Style
Through Hole
Polarized to PCB
Yes
PCB Locator
Yes
Color - Resin
Black
CSA
LR19980
Circuits (Loaded)
30
Flammability
94V-0
Voltage - Maximum
600V AC / 250V DC
Material - Plating Termination
Tin
Durability (mating cycles max)
200
Guide to Mating Part
Yes
Pitch - Mating Interface
2.54mm, 5.50mm
(p)ower-(s)ignal Configuration
6p - 24s
Current - Maximum per Contact
2.5A, 60.0A
Material - Plating Mating
Gold
Polarized to Mating Part
Yes
UL
E29179
Material - Resin
High Temperature Thermoplastic
