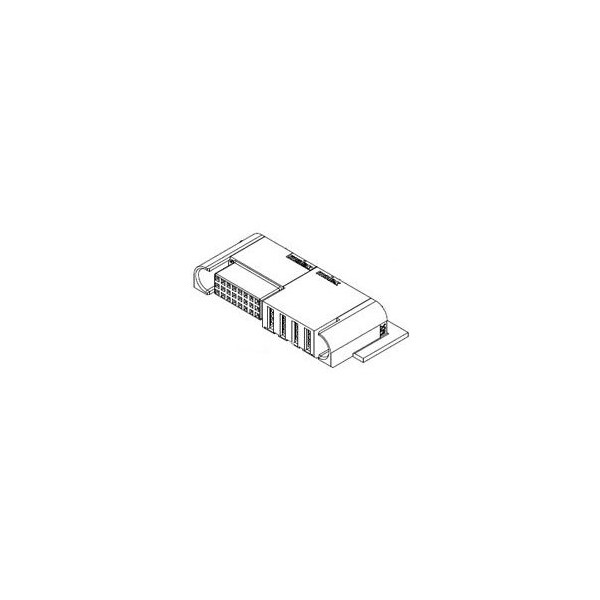

TEN60 RA RECPT ASSY

  • Mfr # 46436-3001

  • Zoro # G4034509

product price:
$
8.79
/ea
Sold in multiples of 15 for $131.85

Key Features

Termination Interface: Style
Through Hole
Material - Plating Termination
Tin
Durability (mating cycles max)
200
PCB Thickness - Recommended
1.58mm
Polarized to Mating Part
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
46436-3001
Zoro #
G4034509
UPC #
-
Country of Origin
Indonesia

Dimensions

PCB Thickness - Recommended
1.58mm

Details

Termination Interface: Style
Through Hole
Material - Plating Termination
Tin
Durability (mating cycles max)
200
Polarized to Mating Part
Yes
Orientation
Right Angle
Circuits (Loaded)
30
Flammability
94V-0
Material - Metal
Copper
Number of Rows
1
Color - Resin
Black
Material - Plating Mating
Gold
UL
E29179
Current - Maximum per Contact
2.5A, 55.0A
Circuits (maximum)
30
Plating min - Termination
2.540µm
Plating min - Mating
0.127µm
Temperature Range - Operating
-40° to +105°C
CSA
LR19980
Guide to Mating Part
Yes
(p)ower-(s)ignal Configuration
4p - 24s
Polarized to PCB
Yes
Material - Resin
High Temperature Thermoplastic
Voltage - Maximum
600V AC / 250V DC
Pitch - Mating Interface
2.54mm, 5.50mm
