Shop MOLEX

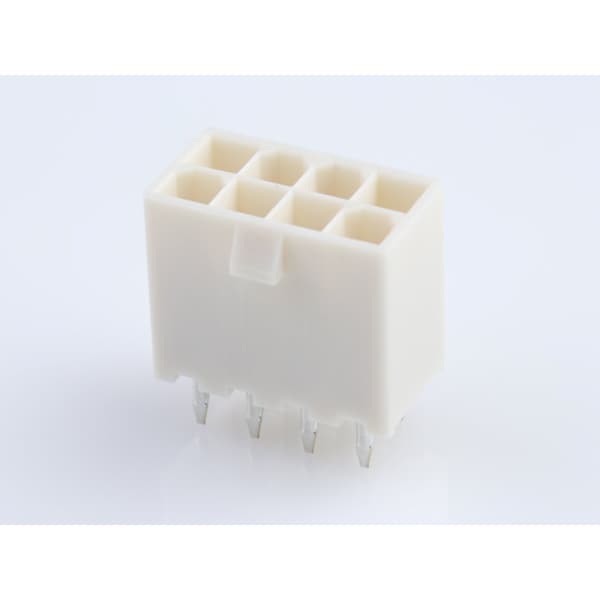

New Mini Fit Header Assy 8Ckt

  • Mfr # 39-28-8080
  • Zoro # G4033991
product price:
$
2.15
/ea
Sold in multiples of 60 for $129.00

Key Features

Circuits (Loaded)
8
Material - Plating Termination
Tin
CSA
LR19980
Material - Resin
Nylon
Pitch - Termination Interface
4.20mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-8080
Zoro #
G4033991
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Circuits (Loaded)
8
Material - Plating Termination
Tin
CSA
LR19980
Material - Resin
Nylon
Pitch - Termination Interface
4.20mm
Plating min - Termination
0.889µm
Plating min - Mating
0.889µm
Flammability
94V-0
Material - Plating Mating
Tin
Termination Interface: Style
Through Hole
Material - Metal
Brass
Shrouded
Fully
PCB Locator
Yes
Polarized to PCB
Yes
Max. Cycles at Max. Process Temperature
1
Orientation
Vertical
Pitch - Mating Interface
4.20mm
Polarized to Mating Part
Yes
Process Temperature max. C
240
Circuits (maximum)
8
Number of Rows
2
UL
E29179
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
30
Current - Maximum per Contact
9.0A
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Color - Resin
Natural
Voltage - Maximum
600V
