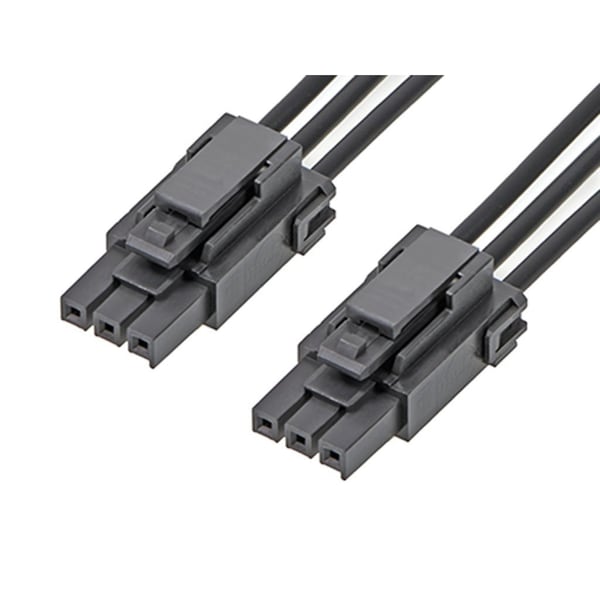

Ultra-Fit Sr R-R 3Ckt 600Mm Disc Sn
Mfr # 2174651033
Zoro # G405926179
product price:Â
$
7.89
/ea
Sold in multiples of 15 for $118.35
Key Features
Cable Length
600.00mm
Application
Power, Wire-to-Board
Series
217465
Type
Discrete Wire Assembly
Current - Maximum per Contact
14.0A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2174651033
- Zoro #
- G405926179
- UPC #
- -
- Country of Origin
- India
- Application
- Power, Wire-to-Board
- Series
- 217465
- Type
- Discrete Wire Assembly
- Current - Maximum per Contact
- 14.0A
- Plating min - Termination
- 1.524µm
- Termination Interface: Style
- Crimp or Compression
- Material - Resin
- Nylon
- Circuits (Loaded)
- 3
- Material - Metal
- High Conductivity Copper
- Pitch - Mating Interface
- 3.50mm
- Material - Plating Mating
- Tin
- Gender
- Female-Female
- Lock to Mating Part
- Yes
- Wire/Cable Type
- UL 1061
- Voltage - Maximum
- 600V AC (RMS)/DC
- Material - Plating Termination
- Tin
- Plating min - Mating
- 1.524µm
- Color - Resin
- Black
- Number of Rows
- 1
- Single Ended
- No
- Assembly Configuration
- Dual Ended Connectors
- Product Name
- Ultra-Fit
- Overmolded
- No
- Connector to Connector
- Ultra-Fit-to-Ultra-Fit
