Shop MOLEX

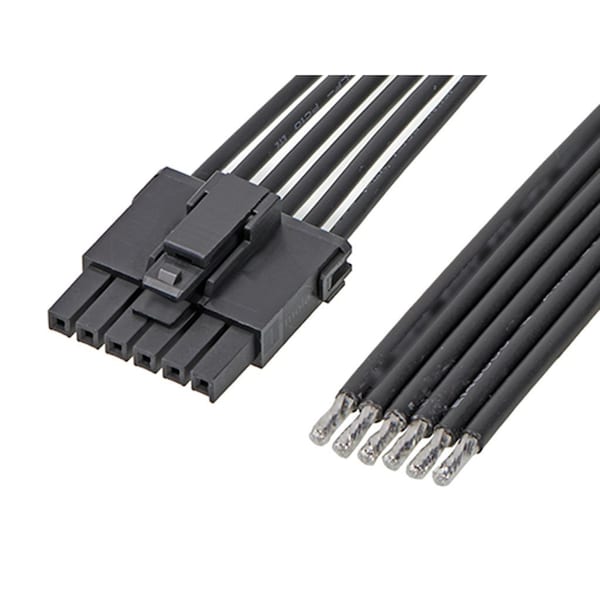

Ultra-Fit Sr R-S 5Ckt 300Mm Disc Sn

  • Mfr # 2174661052

  • Zoro # G605789567

product price:
$
7.15
/ea
Sold in multiples of 15 for $107.25

Key Features

Type
Discrete Wire Assembly
Color
Black
Length
300 mm
Maximum Voltage
600 V AC/DC
Current
14 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2174661052
Zoro #
G605789567
UPC #
-
Country of Origin
India
Item
Ultra-Fit
Type
Discrete Wire Assembly
Color
Black
Maximum Voltage
600 V AC/DC
Current
14 A
Connector Type
Female-Pigtail
Material
Nylon
Series
217466
Contact Finish
Tin Plated
Max. Voltage
600V AC/DC
Current Rating
14 A
Terminal Type
Crimp or Compression
Insulation Material
Nylon
Number of Contacts
5
Number of Rows
1
Wire Range
16 AWG
Hole Center to Center
3.5 mm
Application
Power, Wire-to-Board
Features
Single Ended
Terminal Finish
Tin Plated
Pitch - Mating Interface
3.50mm
Circuits (Loaded)
5
Overmolded
No
Lock to Mating Part
Yes
Connector to Connector
Ultra-Fit-to-Pigtail
Current - Maximum per Contact
14.0A
Material - Resin
Nylon
Product Name
Ultra-Fit
Material - Plating Termination
Tin
Assembly Configuration
Single Ended Connector
Material - Plating Mating
Tin
Plating min - Mating
1.524µm
Wire/Cable Type
UL 1061
Material - Metal
High Conductivity Copper
Voltage - Maximum
600V AC (RMS)/DC
Single Ended
Yes
