Shop MOLINE BEARING

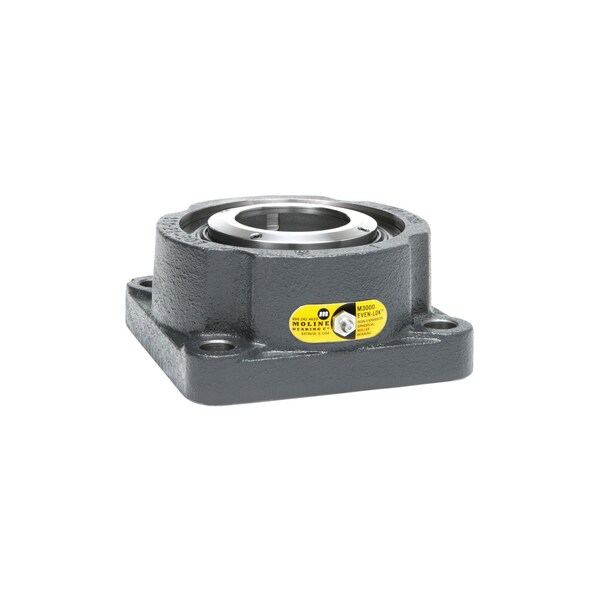

4 Bolt Flange Bearing, Cast Iron

  • Mfr # 19711212
  • Zoro # G208663615

product price:
$
1,161.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
5-9/16 in
Housing Type
Square
Dynamic Load Capacity
43,400 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
19711212
Zoro #
G208663615
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Housing Material
Cast Iron
Bearing Insert Material
Steel
Housing Type
Square
Dynamic Load Capacity
43,400 lbf
Static Load Capacity
54,000 lb
Seal Material
Nitrile
System of Measurement
Inch
Number of Mount Holes
4
Series
M3000
Closure
Double Sealed
Bore Type
Cylindrical
Bearing Lubrication
Relubricateable
Bearing Material Grade
AISI 52100
Bearing Insert Type
Spherical Roller
Number of Rows
2
Maximum Temperature
250 Degrees F
Split Housing
Not Split
Lubricant Material
Lithium Complex Grease - NLGI #2
Includes Bearing Cap
Bearing Cap Not Included
Seal Type
Contact
Maximum Misalignment Angle
1.5 Degrees
Minimum Temperature
0 Degrees F
Internal Clearance
C2
Lubrication Openings
Zirc Fitting
Application
Air Handling, Conveying, High Speed Fans, Industrial Laundries, Screening
Housing Material Grade
Class 30
Expansion Type
Fixed
Self Lubricating Bearing
No
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Maximum Speed
1,600 RPM
Load Direction
Radial
Static Radial Load Capacity
41,100 lbf
Included Bearing
Spherical Roller Bearing
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) Explorer Spherical Roller Bearings

Dimensions

Mount Hole Center-to-Center Length
5-9/16 in
Overall Height
2 7/8 in
Overall Length
7 1/4 in
Mount Hole Center-to-Center Height
5 35/64 in
Mount Hole Size
3/4 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) Explorer Spherical Roller Bearings
Bore Diameter Tolerance
-0.004 in
Bolt Circle Diameter
7.875 in
Overall Width
7 1/4 in
Flange Thickness
1 in
Mounting Bolt Size
3/4 in
Bore Diameter
2 3/4 in
Pilot Diameter
6.625 in
Length
7 1/4 in

Description

M3000 FLANGE NON-EXP
