Shop MOLINE BEARING

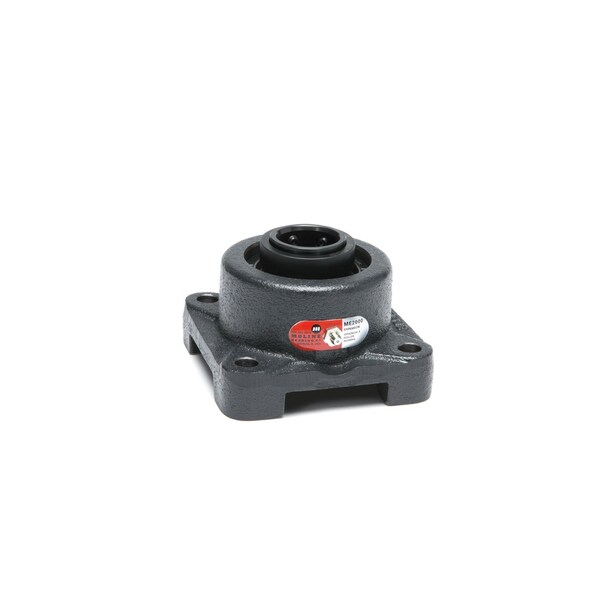

4 Bolt Flange Bearing, Cast Iron, Set Screw

  • Mfr # 29111112
  • Zoro # G308663287
product price:
$
423.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
4-3/8 in
Seal Material
Nitrile
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29111112
Zoro #
G308663287
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Seal Material
Nitrile
Static Load Capacity
19,800 lb
Dynamic Load Capacity
17,300 lbf
Housing Type
Square
Number of Mount Holes
4
System of Measurement
Inch
Load Direction
Radial
Expansion Type
Expansion
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Seal Type
Contact
Included Bearing
Spherical E Roller Bearing
Bearing Lubrication
Relubricateable
Maximum Speed
2,650 RPM
Split Housing
Not Split
Lubrication Openings
Zirc Fitting
Bearing Insert Type
Spherical Roller
Maximum Temperature
250 Degrees F
Internal Clearance
C2
Self Lubricating Bearing
No
Series
ME2000
Bore Type
Cylindrical
Includes Bearing Cap
Bearing Cap Not Included
Number of Rows
2
Closure
Double Sealed
Minimum Temperature
0 Degrees F
Lubricant Material
Lithium Complex Grease - NLGI #2
Housing Material Grade
Class 30
Static Radial Load Capacity
19,800 lbf
Maximum Misalignment Angle
1.5 Degrees
Bearing Material Grade
AISI 52100
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional Footprint

Dimensions

Mount Hole Center-to-Center Length
4-3/8 in
Overall Width
5 5/8 in
Bore Diameter
1 3/4 in
Mounting Bolt Size
1/2 in
Mount Hole Center-to-Center Height
4 3/8 in
Flange Thickness
1 3/16 in
Overall Length
5 5/8 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint"
Bolt Circle Diameter
6.187 in
Mount Hole Size
1/2 in
Bore Diameter Tolerance
-0.0010 in
Pilot Diameter
4.5 in
Overall Height
3 3/32 in
Length
5 5/8 in

Description

ME2000 4-BOLT FLANGE EXP
