Shop MOLINE BEARING

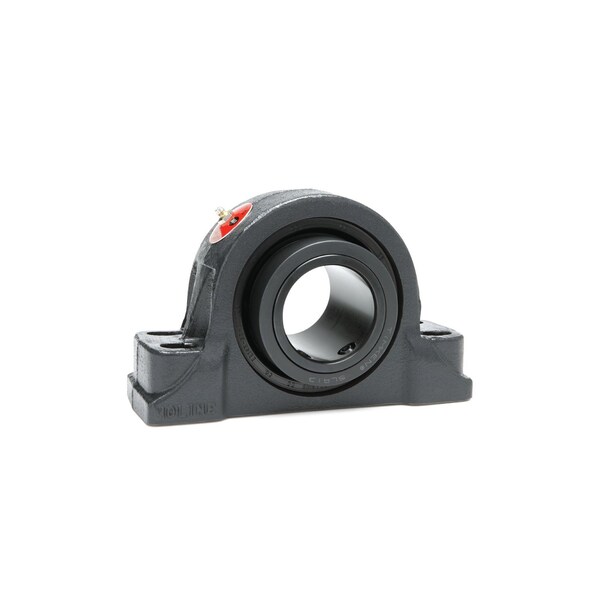

4-Bolt Pillow Block, Cast Iron, Set Screw

  • Mfr # 29141415
  • Zoro # G408664023
product price:
$
3,481.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
15-1/2 in
Dynamic Load Capacity
123000 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29141415
Zoro #
G408664023
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Dynamic Load Capacity
123000 lbf
Static Load Capacity
180000 lb
Seal Material
Nitrile
Number of Mount Holes
4
System of Measurement
Inch
Maximum Temperature
250 Degrees F
Internal Clearance
CN
Split Housing
Not Split
Static Radial Load Capacity
180,000 lbf
Bearing Material Grade
AISI 52100
Expansion Type
Expansion
Included Bearing
Timken Spherical Roller
Lubricant Material
Lithium Complex Grease - NLGI #2
Bore Type
Cylindrical
Bearing Insert Type
Spherical Roller
Closure
Double Sealed
Minimum Temperature
-40 Degrees F
Dynamic Radial Load Capacity
123,000 lbf
Seal Type
Contact
Bearing Lubrication
Relubricateable
Series
ME2000
Maximum Speed
900 RPM
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity

Dimensions

Mount Hole Center-to-Center Length
15-1/2 in
Bore Diameter Tolerance
+0.0000/-0.0015 in
Bore Diameter
4 15/16 in
Center Height
5 1/2 in
Overall Width
6.687 in
Mounting Bolt Size
7/8 in
Overall Height
10.875 in
Overall Length
18.5 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Length
18.5 in

Description

ME2000 4-BOLT PB EXP
