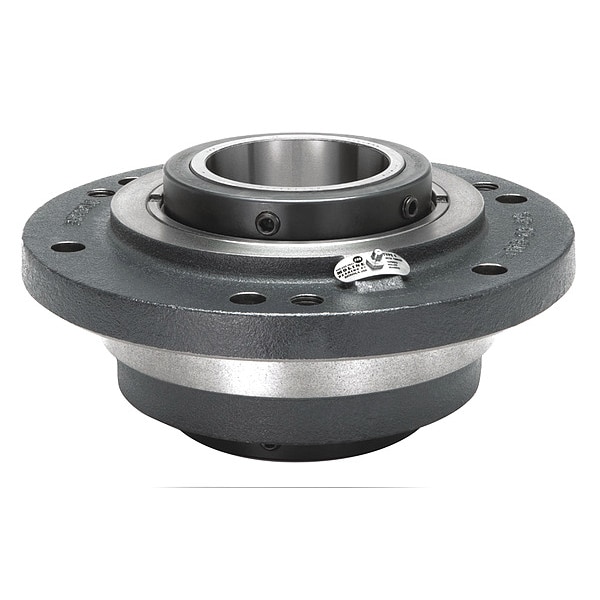

Moline Bearing Flange Brg, Tapered Roller, 4 7/16in Bore 19331407 - main

Flange Brg, Tapered Roller, 4 7/16in Bore

  • Mfr # 19331407

  • Zoro # G1161101

product price: $2,673.99
/ea
Free Shipping & Returns

Key Features

Bearing Insert Type
Tapered Roller
Bore Dia.
4 7/16 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19331407
Zoro #
G1161101
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
4 7/16 in
Bolt Size
3/4 in
Overall Height
65 1/2 in
Dimension G
3 1/32 in
Dimension E
1 1/2 in
Dimension M
5 9/100 in
Dimension A
6 3/4 in
Dimension H
1 in
Dimension P
2 in
Overall Width
6 3/4 in
Dimension L
6 1/4 in
Dimension F
3/4 in
Dimension D
11 3/4 in
Overall Length
65 1/2 in
Dimension C
4 5/8 in
Dimension B
13 1/2 in
Mount Hole Center-to-Center Length
11 3/4 in
Flange Thickness
3 1/32 in
Bolt Circle Diameter
11.75 in
Mount Hole Center-to-Center Height
11 3/4 in
Mounting Bolt Size
3/4 in
Mount Hole Size
3/4 in
Bore Diameter
4 7/16 in

Details

Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
Bolt Hole Center-to-Center
5 9/100 in
Dynamic Load Capacity
33,000 lbf
Housing Material
Cast Iron
Temp. Range
-40 Degrees to 250 Degrees F
Seal Material
Nitrile; Teflon
Bearing Lubrication
Lithium Complex Grease
Item
Flange Bearing
Includes
Timken Type E Tapered Roller Bearing
Static Load Capacity
188,400 lb
Maximum Temperature
250 Degrees F
Lubrication Openings
One Zirc Fitting
Lubricant Material
Lithium Complex Grease
System of Measurement
Inch
Expansion Type
Fixed
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Housings of Class 30 Cast Iron, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Application
Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Bearing Material Grade
52100
Housing Material Grade
Class 30
Number of Mount Holes
4
Minimum Temperature
-40 Degrees F
Housing Material Finish
Painted
Closure
Double Sealed
Load Direction
Radial, Thrust
Bore Type
Cylindrical
Housing Type
Circular
Rolling Element Rows
2
Seal Type
Contact
Static Radial Load Capacity
188,400 lbf

Description

Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 4 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Lubricant Material Lithium Complex Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 11 3/4 in, Number of Mount Holes 4, Overall Height 65 1/2 in, Overall Length 65 1/2 in, Overall Width 6 3/4 in
