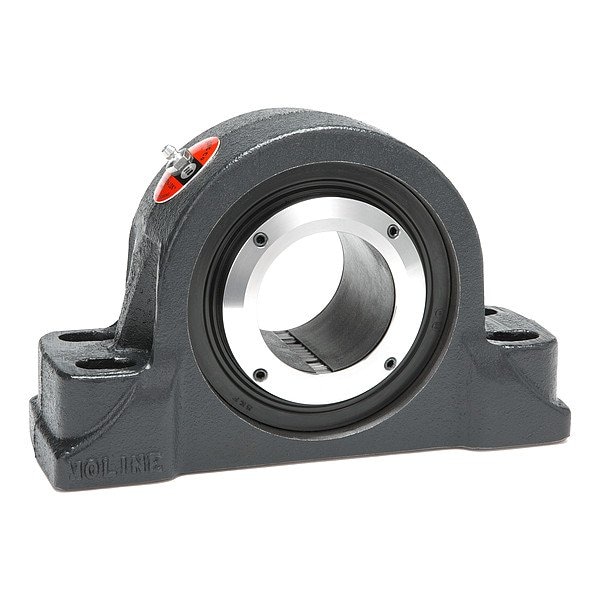

Pillow Block Bearing, Cast Iron Housing Material, Concentric Locking Collar, Spherical Roller, 3-15/16 in Dia, Steel Insert Material

  • Mfr # 29641315

  • Zoro # G513866442

product price:  $1,961.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Concentric Locking Collar
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29641315
Zoro #
G513866442
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
3-15/16 in
Center Height
4-1/4 in
Mount Hole Center-to-Center Length
11 in
Overall Length
15-1/4 in
Overall Width
15-1/4 in
Overall Height
8-1/2 in
Bore Diameter Tolerance
+0.000 in to -0.004 in
Mounting Bolt Size
3/4 in
Base Width
4-1/2 in
Base Height
2-7/16 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Concentric Locking Collar
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Closure
Double Sealed
Number of Mount Holes
4
Dynamic Radial Load Capacity
81,000 lbf
Expansion Type
Expansion
Included Bearing
Spherical E Roller Bearing
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Distributes Locking Force Equally Through Even-Lok(TM), For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Supplied with Special Hex-L Key Allen Wrench
Application
Air Handling, Conveying, High Speed Fans, Industrial Laundries, Screening
Includes Mounting Hardware
Yes
Seal Type
Contact
Maximum Speed
1,200 RPM
Static Radial Load Capacity
93,300 lbf
Maximum Temperature
250 Degrees F
Bearing Material Grade
AISI 52100
Lubricant Material
LC-2 Lithium Complex Grease
Minimum Temperature
-40 Degrees F
Seal Material
Nitrile
Bore Type
Cylindrical

Description

ME3000 4-BOLT PB EXP
