Shop MOLINE BEARING

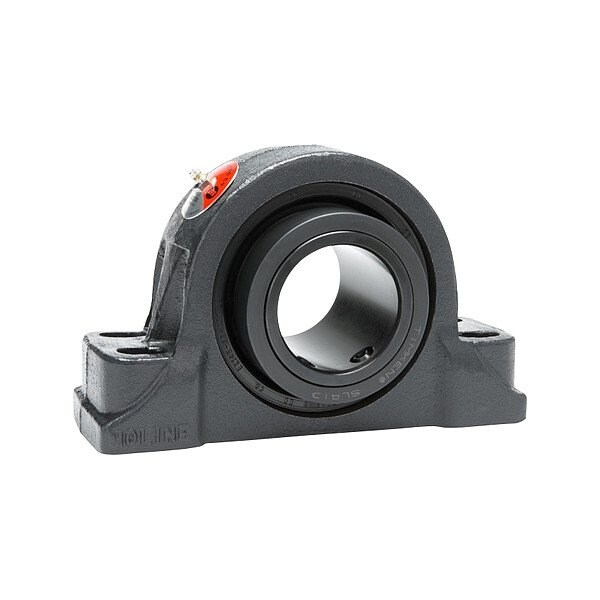

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Spherical Roller, 3-11/16 in Dia, Alloy Steel Insert Material

  • Mfr # 29241311

  • Zoro # G013866447

product price:
$
1,668.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29241311
Zoro #
G013866447
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
3-11/16 in
Center Height
4-1/4 in
Mount Hole Center-to-Center Length
11-11/16 in
Overall Length
15-1/4 in
Overall Width
5-1/4 in
Overall Height
8-1/2 in
Bore Diameter Tolerance
+0.0000/-0.0010 in
Mounting Bolt Size
3/4 in
Wire Rope Length
15.25 in
Length
15.25 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Alloy Steel
Closure
Double Sealed
Dynamic Radial Load Capacity
69,900 lbf
Seal Type
Contact
Maximum Speed
1,200 RPM
Number of Mount Holes
4
Expansion Type
Fixed
Included Bearing
Timken Spherical Roller
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Maximum Temperature
250 Degrees F
Static Radial Load Capacity
93,300 lbf
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Lubricant Material
Lithium Complex Grease - NLGI #2
Minimum Temperature
-40 Degrees F
Seal Material
Nitrile
Bearing Material Grade
AISI 52100
Bore Type
Cylindrical
Series
ME2000
Bearing Lubrication
Relubricateable
Internal Clearance
CN
Split Housing
Not Split

Description

ME2000 4-BOLT PB NON-EXP
