Shop MOLINE BEARING

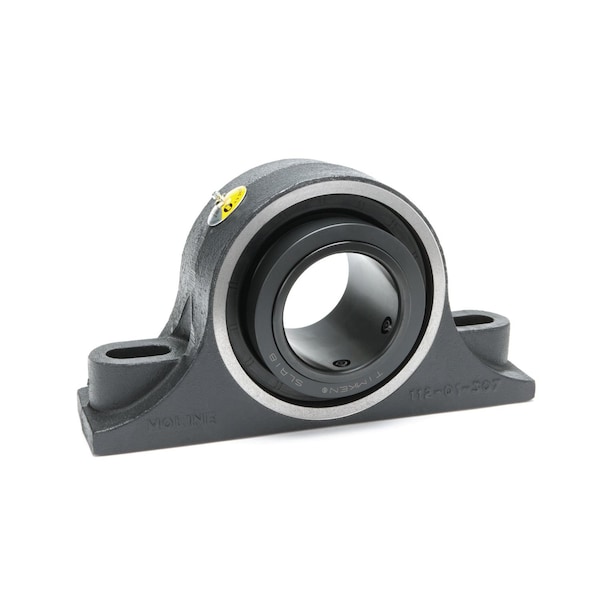

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Spherical Roller, Steel Insert Material

  • Mfr # 29221211
  • Zoro # G108663630
product price:
$
796.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Center Height
3-1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29221211
Zoro #
G108663630
UPC #
-
Country of Origin
United States

Dimensions

Center Height
3-1/8 in
Mount Hole Center-to-Center Length
8-13/16 in
Mounting Bolt Size
3/4 in
Base Width
10.5 in
Base Height
1.63 in
Overall Width
3.875 in
Bore Diameter Tolerance
+0.0000/-0.0010 in
Bore Diameter
2 11/16 in
Inner Ring Width
3.38 in
Overall Height
6.312 in
Mount Hole Size
1 1/2 in
Overall Length
12 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity

Details

Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Static Radial Load Capacity
46,800 lbf
Seal Type
Contact
Dynamic Radial Load Capacity
34,500 lbf
Seal Material
Nitrile
Bearing Lubrication
Relubricateable
Series
ME2000
Bore Type
Cylindrical
Maximum Temperature
250 Degrees F
Mount Type
Bolt-Through
Split Housing
Not Split
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Bearing Material Grade
AISI 52100
Minimum Temperature
-40 Degrees F
Lubricant Material
Lithium Complex Grease - NLGI #2
System of Measurement
Inch
Maximum Speed
1,600 RPM
Number of Mount Holes
2
Closure
Double Sealed
Internal Clearance
CN
Expansion Type
Fixed
Included Bearing
Timken Spherical Roller

Description

ME2000 2-BOLT PB NON-EXP
