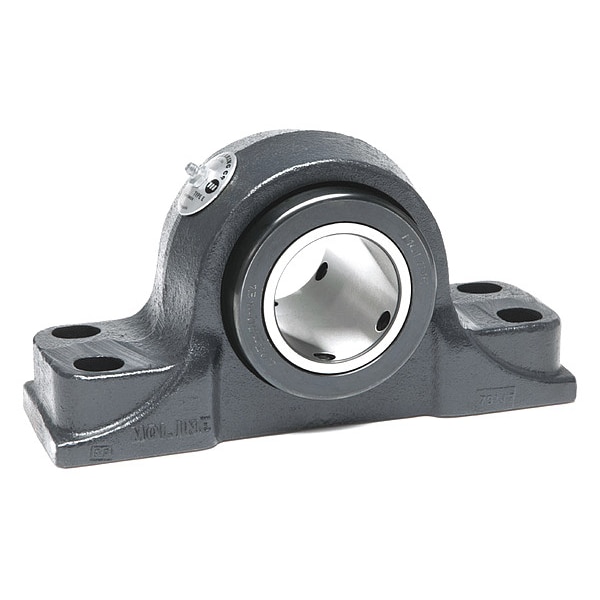

Moline Bearing Pillow Block Brg, 2 7/16in Bore, Cast Iron 19341207 - main

Pillow Block Brg, 2 7/16in Bore, Cast Iron

  • Mfr # 19341207

  • Zoro # G1161409

product price:  $416.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Tapered Roller
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
19341207
Zoro #
G1161409
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
2-7/16 in
Center Height
2-3/4 in
Mount Hole Center-to-Center Length
8-1/2 in
Mount Hole Size
7/8 in
Overall Length
10-1/2 in
Overall Width
4 in
Overall Height
5-1/2 in
Dimension F
5/8 in
Dimension M
2 3/4 in
Dimension L
4 in
Dimension G
7/8 in
Dimension H
1 5/8 in
Dimension A
4 in
Dimension C
3 1/2 in
Dimension D
8 1/2 in
Dimension B
10 1/2 in
Dimension J
5 1/2 in
Base Height
1.63 in
Mount Hole Center-to-Center Width
1 7/8 in
Base Width
3.5 in
Mounting Bolt Size
5/8 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Tapered Roller
Bearing Insert Material
Alloy Steel
Closure
Double Sealed
Temp. Range
-40 Degrees to 250 Degrees F
Includes
Timken Type E Tapered Roller Bearing
Bearing Material Grade
52100
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with Timken (TM) Enhanced Dee Tapered Roller Bearings with the Highest Industry Load Ratings, Double-Extended Inner Race, Case Hardened Rollers and Races, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Dimensionally Interchangeable with Comparable Type E Units, Moline Split E1000, Moline ME2000 and ME3000, Extended Inner Race has Two Locking Collars with 65 Degrees Set Screw Spacing, Misalignment = .010 in Per Foot of Shaft, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is up to 250 Degrees , High Temperature Grease is Available up to 350 Degrees
Minimum Temperature
-40 Degrees F
Mount Type
Bolt-Through
Included Bearing
Timken Type E Tapered Roller
Bore Type
Cylindrical
Application
Aggregate, Conveying, Cranes, Forestry, Mining, Oil, Gas, Power Generation, Screening
Static Radial Load Capacity
54,000 lbf
Maximum Temperature
250 Degrees F
Expansion Type
Fixed
Maximum Speed
2,100 RPM
Lubricant Material
Lithium Complex Grease
Seal Type
Contact
Number of Mount Holes
4
Dynamic Axial Load Capacity
11,600 lbf
Load Direction
Radial, Thrust
Dynamic Radial Load Capacity
11,600 lb

Description

Pillow Block Bearing, Base Height 1.63 in, Base Width 3.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 2 7/16 in, Bore Type Cylindrical, Center Height 2 3/4 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing Timken Type E Tapered Roller, Lubricant Material Lithium Complex Grease, Maximum Speed 2,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
