Shop MONARCH

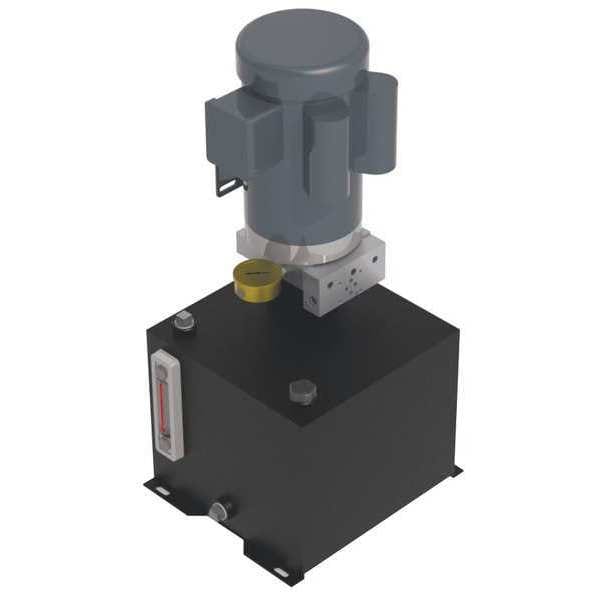

Power Unit, 1 Stage, 115/230VAC, 3000 psi

  • Mfr # M-4505-0149

  • Zoro # G9987546

product price:
$
1,676.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Power Source - Power Units
AC Power
Voltage
115/230V AC
Nominal Flow
1 gpm
Max. Pressure
3,000 psi
Reservoir Capacity
5 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-4505-0149
Zoro #
G9987546
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
27 in
Overall Width
12 1/4 in
Overall Length
14 in
Pressure Port Thread Size
9/16"-18 (SAE 6)
NFPA Size
D03
Return Port Thread Size
9/16"-18 (SAE 6)
Wire Rope Length
14 in
Length
14 in

Details

Power Source - Power Units
AC Power
Voltage
115/230V AC
Nominal Flow
1 gpm
Max. Pressure
3,000 psi
Reservoir Capacity
5 gal
Number of Stages
1
Phase
1
Hz
60/50
RPM
1,800 RPM
Item
Hydraulic Power Unit
HP
2 hp
Return Port
9/16"-18 (SAE 6)
Full Load Amps
19.0/9.5 A
Pressure Port
9/16"-18 (SAE 6)
Manifold Block
D03
Mounting
Vertical
Mounting Orientation - Power Units
Vertical
Pump Stage
1
Number of Phases
1
Hertz
50/60 Hz
Circuit Design
Single or Double Acting
Hydraulic Pump Type
Gear
Frame Design - Hydraulic Power Units
Standard

Description

Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 2 hp HP, RPM 1,800 RPM, 115/230V AC, 50/60 Hz Hertz, Number of Phases 1, Full Load Amps 19.0/9.5 A, Pump Stage 1, Max. Pressure 3,000 psi, Nominal Flow 1 gpm, Reservoir Capacity 5 gal, Overall Length 14 in, Overall Width 12 1/4 in, Overall Height 27 in
