  11. Power Unit, 1Stage, 208-230/460VAC, 2000psi
Shop All Hydraulic Power Units
Monarch

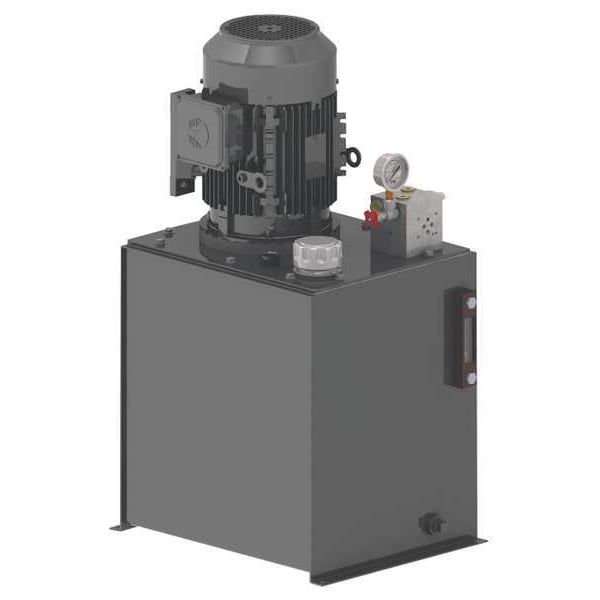

Power Unit, 1Stage, 208-230/460VAC, 2000psi

product price: $2,380.99
/ea
Item requires special delivery charges. A $85.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Power Source - Power Units AC Power
  • Voltage 208-230/460V AC
  • Nominal Flow 3.7 gpm
  • Max. Pressure 2,000 psi
  • Reservoir Capacity 15 gal
See all product information

Product Information

Dimensions

Overall Height 35 in
Overall Width 17 in
Overall Length 20 in

Details

Power Source - Power Units AC Power
Voltage 208-230/460V AC
Nominal Flow 3.7 gpm
Max. Pressure 2,000 psi
Reservoir Capacity 15 gal
Manifold Block D03
Hz 60/50
RPM 1,800 RPM
Full Load Amps 13.7-12.4/6.2A
Return Port 7/8"-14 (SAE 10)
Number of Stages 1
Mounting Vertical
Built-In Features Adjustable Relief Valve
Phase 3
Item Hydraulic Power Unit
Pressure Port 3/4"-16 (SAE 8)
HP 5 hp
Circuit Design Single or Double Acting
Number of Phases 3
Hertz 50/60
Frame Design - Hydraulic Power Units Standard
Mounting Orientation - Power Units Vertical

Description

Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 5 hp HP, RPM 1,800 RPM, 208-230/460V AC, 50/60 Hertz, Number of Phases 3, Full Load Amps 13.7-12.4/6.2, Pump Stage 1, Max. Pressure 2,000 psi, Nominal Flow 3.7 gpm, Reservoir Capacity 15 gal, Overall Length 20 in, Overall Width 17 in, Overall Height 35 in
