Shop MONARCH

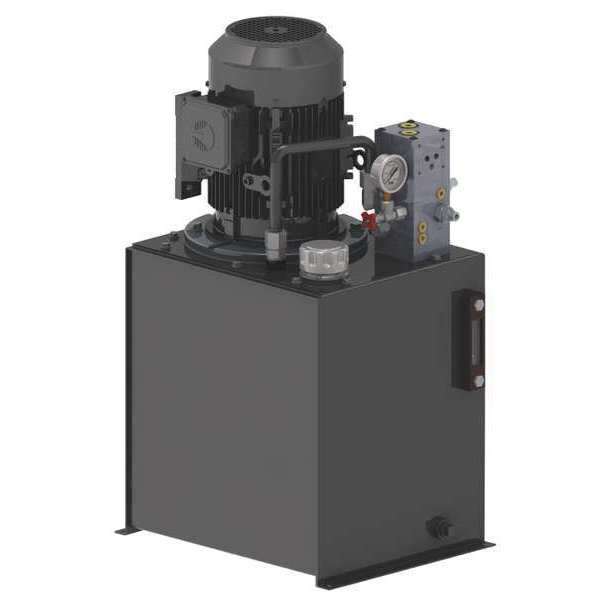

Power Unit, 2Stage, 208-230/460VAC, 2000psi

  • Mfr # T94C405C93F0-01
  • Zoro # G9974273
product price:
$
3,456.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Power Source - Power Units
AC Power
Voltage
208-230/460V AC
Nominal Flow
16.0/3.8 gpm
Max. Pressure
2,000 psi
Reservoir Capacity
15 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T94C405C93F0-01
Zoro #
G9974273
UPC #
-
Country of Origin
Canada

Dimensions

Overall Width
15 in
Overall Height
35 in
Overall Length
20 in
Return Port Thread Size
1-1/16"-12 (SAE 12)
NFPA Size
D05
Pressure Port Thread Size
7/8"-14 (SAE 10)
Wire Rope Length
20 in
Length
20 in

Details

Power Source - Power Units
AC Power
Voltage
208-230/460V AC
Nominal Flow
16.0/3.8 gpm
Max. Pressure
2,000 psi
Reservoir Capacity
15 gal
Manifold Block
D05
Pressure Port
7/8"-14 (SAE 10)
Full Load Amps
13.7-12.4/6.2 A
RPM
1,800 RPM
Hz
50/60 Hz
Number of Stages
2
Mounting
Vertical
Built-In Features
Adjustable Relief Valve, High/Low Valve
Return Port
1-1/16"-12 (SAE 12)
Item
Hydraulic Power Unit
Phase
3
HP
5 hp
Circuit Design
Single or Double Acting
Hertz
50/60 Hz
Pump Stage
2
Frame Design - Hydraulic Power Units
Standard
Number of Phases
3
Mounting Orientation - Power Units
Vertical
Hydraulic Pump Type
Gear

Description

Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 5 hp HP, RPM 1,800 RPM, 208-230/460V AC, 50/60 Hz Hertz, Number of Phases 3, Full Load Amps 13.7-12.4/6.2 A, Pump Stage 2, Max. Pressure 2,000 psi, Nominal Flow 16.0/3.8 gpm, Reservoir Capacity 15 gal, Overall Length 20 in, Overall Width 15 in, Overall Height 35 in
