Shop MONARCH

Power Unit, 15gal., 208-230/460VAC, 1600psi

  • Mfr # T3VC405C02F1-01

  • Zoro # G0070625

product price:
$
2,970.99
/ea
Additional $190.00 delivery surcharge applies per item.
See details

Key Features

Power Source - Power Units
AC Power
Voltage
208-230/460V AC
Nominal Flow
4.5 gpm
Max. Pressure
1,600 psi
Reservoir Capacity
15 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T3VC405C02F1-01
Zoro #
G0070625
UPC #
-
Country of Origin
Canada

Dimensions

Overall Length
20 in
Overall Width
17 in
Overall Height
36 in
NFPA Size
D03
Pressure Port Thread Size
3/4"-16 (SAE 8)
Return Port Thread Size
7/8"-14 (SAE 10)
Wire Rope Length
20 in
Length
20 in

Details

Power Source - Power Units
AC Power
Voltage
208-230/460V AC
Nominal Flow
4.5 gpm
Max. Pressure
1,600 psi
Reservoir Capacity
15 gal
Item
Hydraulic Power Unit
Phase
3
Return Port
7/8"-14 (SAE 10)
Full Load Amps
13.7/12.4/6.2 A
Hz
60/50
Built-In Features
Return Filter, Safety Relief Valve
Manifold Block
D03
HP
5 hp
Number of Stages
1
Pressure Port
3/4"-16 (SAE 8)
Mounting
Vertical
RPM
1,800 RPM
Frame Design - Hydraulic Power Units
Standard
Hertz
50/60 Hz
Circuit Design
Single or Double Acting
Pump Stage
1
Number of Phases
3
Hydraulic Pump Type
Vane
Mounting Orientation - Power Units
Vertical

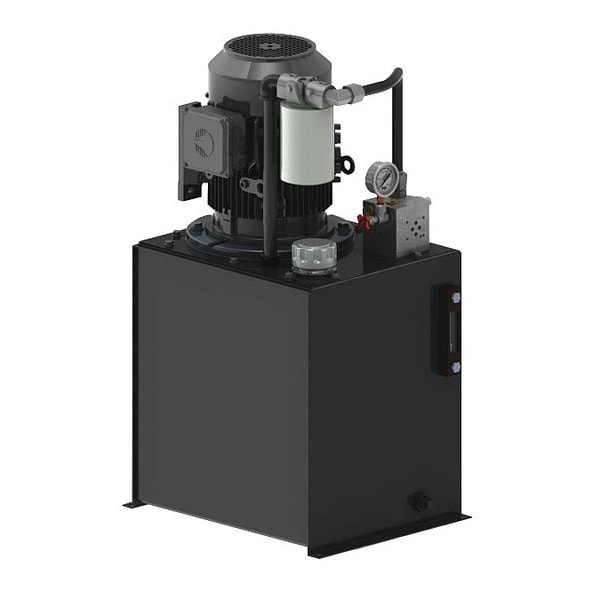

Description

Hydraulic Power Unit, Circuit Design Single or Double Acting, Power Source - Power Units AC Power, 5 hp HP, RPM 1,800 RPM, 208-230/460V AC, 50/60 Hz Hertz, Number of Phases 3, Full Load Amps 13.7/12.4/6.2 A, Pump Stage 1, Max. Pressure 1,600 psi, Nominal Flow 4.5 gpm, Reservoir Capacity 15 gal, Overall Length 20 in, Overall Width 17 in, Overall Height 36 in
