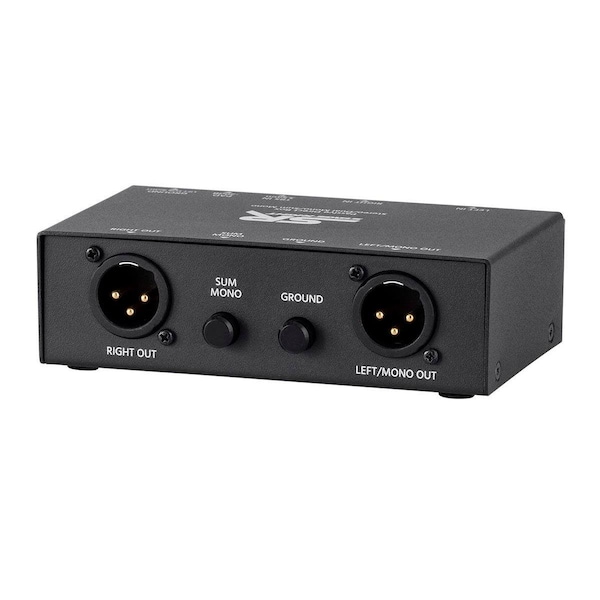

Monoprice 600122 Stage Right Sound Block II Stereo Passive Direct Box with Ground Lift Sum Mono & Attenuator (Discontinued)

Throw the Sound Block II in a bag, trunk, or anywhere cable and mic audio supplies are stored. The heavy-duty construction and passive electronics make the Sound Block II nearly indestructible. This Direct Interface is extremely versatile as a Hi-to-LoZ transformer for electric instruments and devices to XLR mics.

The Sound Block II is a very easy to use passive device. Choose your input; 1/4" L/R from an electric piano or small mixer, stereo RCA from consumer audio products, (such as Blu-ray Disc players), or 3.5mm from your mobile device or computer.

Enjoy a fully balanced stereo XLR L+R line to a stage snake or mixer. If you need to conserve input channels, select the SUM MONO function to combine the stereo signal to a single balanced run to the system.

• Heavy-duty 14 gauge steel construction
• Use with high output signal -20dB pad
• Easy to use passive electronic device
• Control hum and buzz from stage with the ground lift
• Input forms; 1/4" TS, RCA, 3.5mm
• 50k parallel input/output impedance
• 600 XLR-M balanced output impedance
• Sum stereo input to mono output

• Instrument Inputs: 1/4" unbalanced TS jack x 2, Dual RCA, 3.5mm TRS
• Input Impedance: 50k
• Main Output: 2x Balanced XLR jacks
• Main Output Impedance: 600
• Parallel (Link) Output: 2x 1/4" unbalanced TS jacks
• Parallel Output Impedance: 50k
• Input Attenuation: Switchable (0, -20dB)
• Ground Lift: Switchable
• Construction: Steel
• Dimensions: 4.7" x 3.0" x 1.8" (120 x 76 x 45 mm)
