  11. Brushless DC Motor, ECM, 1/15 HP, 115V, Stud
This item is Discontinued.

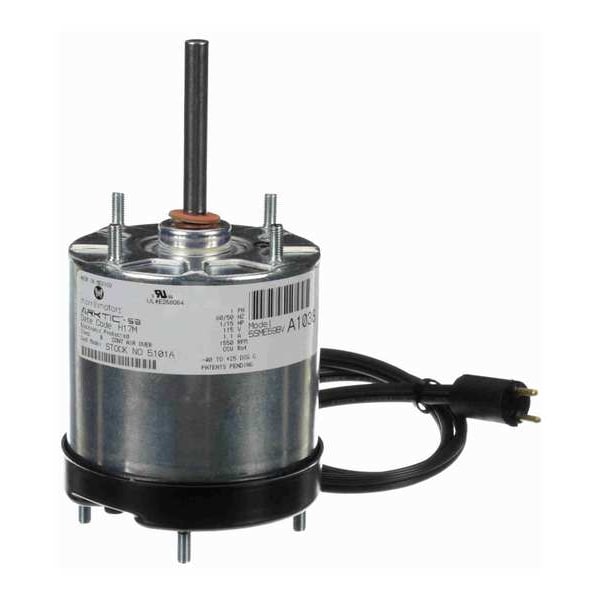

Morrill Brushless DC Motor, ECM, 1/15 HP, 115V, Stud 5101A

Brushless DC Motor, ECM, 1/15 HP, 115V, Stud (Discontinued)

  • Mfr # 5101A
  • Zoro # G5246482
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5101A
Zoro #
G5246482
UPC #
815585024620
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 1/16 in
Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Shaft Length
2 5/8 in
Bolt Circle Dia.
2 7/8 in
Overall Length
6 3/4 in
Lead Length
24 in

Details

Motor Sub Application
Refrigerator/Freezer
HP
1/15
Output Watts
50 W
RPM Range
1,501-1,600
Voltage
115V AC
Phase
Single
Motor Shaft Rotation
CCWLE
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,550
No. of Speeds
1
Motor Shaft Design
Flat
Standards
CSA, UL
Mounting Pattern
2-4/5 in Diameter Bolt Circle
Duty
Continuous
Ambient Temperature
-40 Degrees to 25 Degrees C
Item
ECM Direct Drive Blower Motor
Hz
60/50 Hz
Motor Bearings
Ball
Frame
3.3
Max. Ambient Temp.
25 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Application
HVAC/R
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Application
Walk In Coolers, Freezers
Plug Type
Round 2 Pin
Capacitor Required
No
Motor Design
ECM
Includes
Mounting Bracket
Frame Material
Steel
Ins. Class
B
Full Load Amps
1 A
Motor Mounting Type
Ring/Stud
Motor Thermal Protection
Electronic
Mounting Stud Pattern
2 4/5 in
Duty Cycle
Continuous
Voltage @ 50Hz
115V AC
Usable @ 208V
No
Number of Shafts
1
Usable @ 200V
No
Mounting Holes
4
Full Load Amps @ 50Hz
1.10 A
HP @ 50Hz
1/15
Weight
4 lb
RPM @ 50Hz
1,550 RPM
Number of Speeds
1
Mounting
Stud
Frequency
60/50 Hz

Description

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Electronic, 60/50 Hz Hz, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 25 Degrees C, Duty Cycle Continuous, Lead Length 24 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal, Vertical Shaft Down
