  11. Brushless DC Motor, ECM, 1/15 HP, 1550 rpm
This item is Discontinued.

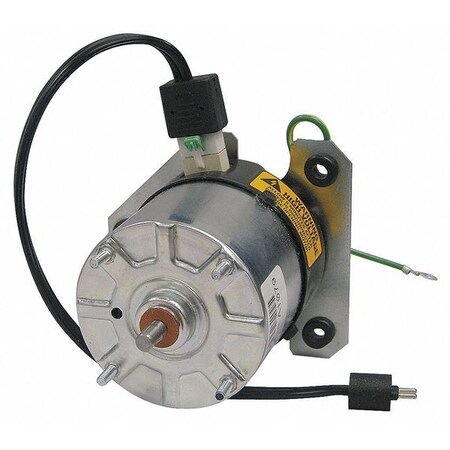

Morrill Brushless DC Motor, ECM, 1/15 HP, 1550 rpm 5SME59BLA1079

Brushless DC Motor, ECM, 1/15 HP, 1550 rpm (Discontinued)

  • Mfr # 5SME59BLA1079
  • Zoro # G1432681
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5SME59BLA1079
Zoro #
G1432681
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Bolt Circle Dia.
2 4/5 in
Overall Length
5 9/64 in
Shaft Length
1 in
Length Less Shaft
4 1/8 in
Body Dia.
3 3/10 in

Details

Motor Sub Application
Refrigerator/Freezer
HP
1/15
RPM Range
1501-1600
Voltage
115
Phase
1
Nameplate RPM
1550
No. of Speeds
1
Frame Material
Aluminum
Capacitor Required
No
Full Load Amps
1.3
Application
Condenser and Evaporator Fans, Walk In Coolers, and Freezers
Standards
UL Recognized (E306123)
Voltage Compatibility
115, 120, 115/208-230, 115/230, 120/240
Frame
Nonstandard
Motor Frame Material
Cast Aluminum
Hz
60
Motor Application
HVAC/R
Duty
Continuous
Motor Service Factor
1.00
Item
Brushless DC Motor
Motor Thermal Protection
Auto
Plug Type
2 Prong Lyall M-2-24
Mounting Pattern
2 4/5 in Diameter Bolt Circle
Ins. Class
B
Max. Ambient Temp.
55 Degrees C
Ambient Temperature
-40 to 55 Degrees C
Motor Bearings
Ball
Includes
Lead Cord
Stud Quantity
8 (4 Each End)

Description

Brushless DC Motor, 1/15 HP, 1550 Nameplate RPM, Nonstandard Frame, Voltage 115, Hz 60, 1 Phase, Full Load Amps 1.3, Auto Motor Thermal Protection, Ins. Class B, No. of Speeds 1, Ball Motor Bearings, Motor Service Factor 1.00, Ambient Temperature -40 to 55 Degrees C, Max. Ambient Temp. 55 Degrees C, Motor Frame Material Cast Aluminum, Overall Length 5 9/64 in, Length Less Shaft 4 1/8 in, Shaft Dia. 5/16 in, Shaft Length 1 in, Body Dia. 3 3/10 in, Continuous Duty, Plug Type 2 Prong Lyall M-2-24
