  11. Brushless DC Motor, ECM, 1/60 HP, 1550 rpm
This item is Discontinued.

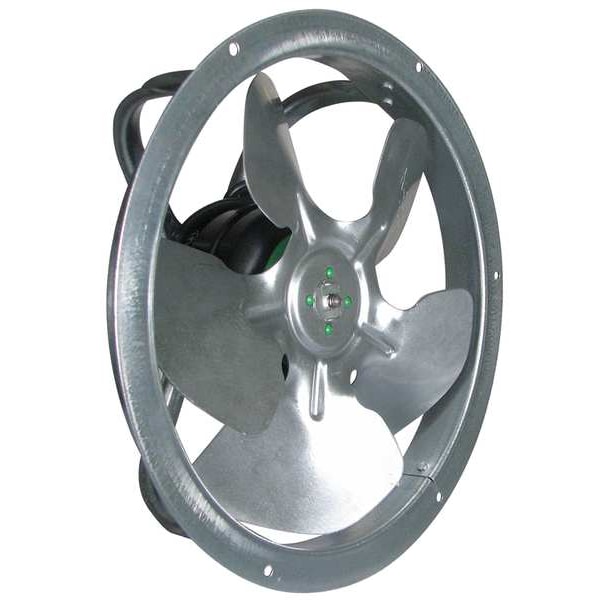

Morrill Brushless DC Motor, ECM, 1/60 HP, 1550 rpm 5R024

Brushless DC Motor, ECM, 1/60 HP, 1550 rpm (Discontinued)

  • Mfr # 5R024
  • Zoro # G1884513
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R024
Zoro #
G1884513
UPC #
815585024897
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Overall Length
4 3/16 in
Bolt Circle Dia.
9 1/2 in
Body Dia.
3 5/16 in
Length Less Shaft
3 1/4 in
Lead Length
15 in

Details

Motor Sub Application
Refrigerator/Freezer
HP
1/60
Output Watts
12 W
RPM Range
1,501-1,600
Voltage
115V AC
Phase
Single
Motor Shaft Rotation
CWLE
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,550
No. of Speeds
1
Motor Mounting Position
All Angle
Ambient Temperature
-40 to 55 Degrees C
Max. Ambient Temp.
55 Degrees C
Motor Bearings
Unit
Ins. Class
B
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
0.3 A
Plug Type
2 Prong Lyall M-2-24
Motor Design
ECM
Motor Frame Material
Aluminum
Frame Material
Aluminum
Includes
Fan Blade, Moisture Shield, Mounting Bracket
Frame
Non-Standard
Motor Shaft Design
Threaded
Mounting Pattern
9-17/32 in Diameter Bolt Circle
Motor Mounting Type
Shroud
Hz
60 Hz
Standards
CSA, UL
Application
Condenser Fans, Freezers, Walk In Coolers
Duty
Continuous
Item
ECM Unit Bearing Motor
Capacitor Required
No
Usable @ 200V
No
Mounting Holes
5 on 9.532 in Bolt Circle
Weight
4 lb
Duty Cycle
Continuous
Number of Shafts
1
Usable @ 208V
No
Frequency
60 Hz
Number of Speeds
1

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/60 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.3 A, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Ins. Class B, Motor Shaft Rotation CWLE, Max. Ambient Temp. 55 Degrees C, Duty Cycle Continuous, Lead Length 15 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Shroud, Motor Mounting Position All Angle, Number of Shafts 1
