  11. Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V
This item is Discontinued.

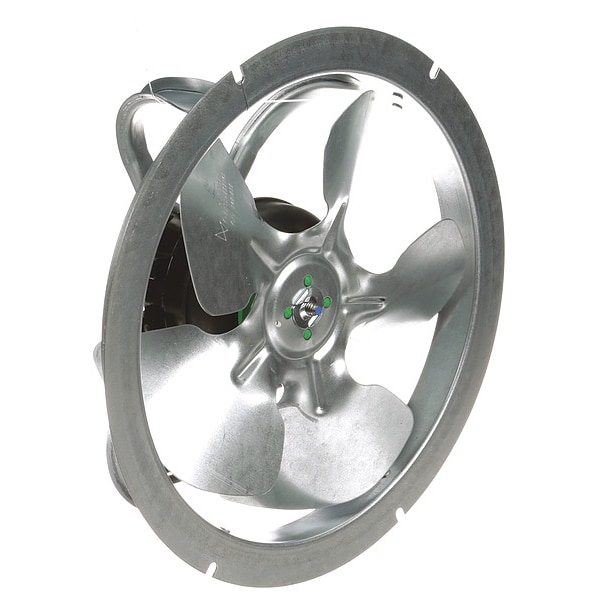

Morrill Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V 5R026

Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V (Discontinued)

  • Mfr # 5R026
  • Zoro # G2371236
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R026
Zoro #
G2371236
UPC #
815585027157
Country of Origin
Mexico

Dimensions

Overall Length
3 7/8 in
Body Dia.
3 5/16 in
Shaft Length
5/8 in
Shaft Dia.
1/4 in
Length Less Shaft
3 1/4 in
Bolt Circle Dia.
9 13/16 in
Lead Length
20 in

Details

Motor Sub Application
Refrigerator/Freezer
HP
1/50
Output Watts
12 W
RPM Range
1,501-1,600
Voltage
115V AC
Phase
Single
Motor Shaft Rotation
CWLE
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,550
No. of Speeds
1
Mounting Pattern
9-13/16 in
Frame
Non-Standard
Motor Application
HVAC/R
Frame Material
Aluminum
Full Load Amps
0.3 A
Plug Type
2 Prong Lyall M-2-24
Motor Frame Material
Aluminum
Hz
60 Hz
Ins. Class
B
Duty
Continuous
Ambient Temperature
-40 to 55 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Unit
Application
Condenser Fans, Evaporator Fans, Freezers, Walk In Coolers
Item
ECM Unit Bearing Motor
Standards
CSA, UL
Motor Thermal Protection
Auto
Motor Service Factor
1
Includes
Fan Blade, Moisture Shield, Mounting Bracket
Capacitor Required
No
Motor Mounting Type
Shroud
Max. Ambient Temp.
55 Degrees C
Motor Shaft Design
Threaded
Motor Design
ECM
Motor Mounting Position
All Angle
Usable @ 208V
No
Mounting Stud Pattern
9 13/16 in
Number of Shafts
1
Duty Cycle
Continuous
Weight
4 lb
Usable @ 200V
No
Mounting
Bracket
Frequency
60 Hz
Number of Speeds
1

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.3 A Full Load Amps, Non-Standard Frame, Output Watts 12 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Shroud, Motor Frame Material Aluminum
