  11. Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V
This item is Discontinued.

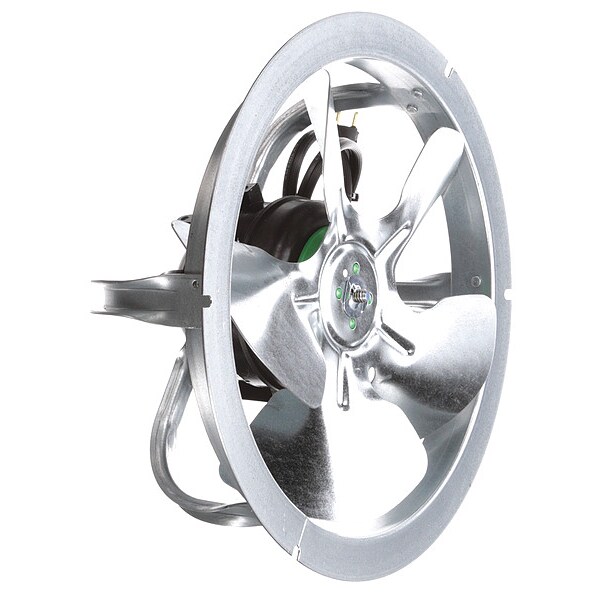

Morrill Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V 5R028

Motor, 1/50 HP, 1550 rpm, Non-Standard, 115V (Discontinued)

  • Mfr # 5R028
  • Zoro # G2371227
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5R028
Zoro #
G2371227
UPC #
815585024828
Country of Origin
Mexico

Dimensions

Overall Length
4 1/8 in
Length Less Shaft
3 1/4 in
Shaft Length
5/8 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Bolt Circle Dia.
9 13/16 in
Lead Length
20 in

Details

Motor Sub Application
Refrigerator/Freezer
HP
1/50
Output Watts
16 W
RPM Range
1,501-1,600
Voltage
115V AC
Phase
Single
Motor Shaft Rotation
CWLE
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,550
No. of Speeds
1
Motor Thermal Protection
Auto
Capacitor Required
No
Frame
Non-Standard
Application
Condenser Fans, Freezers, Walk In Coolers
Standards
CSA, UL
Motor Service Factor
1
Hz
60 Hz
Frame Material
Aluminum
Motor Application
HVAC/R
Includes
Fan Blade, Moisture Shield, Mounting Bracket
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Pattern
9-13/16 in
Motor Frame Material
Aluminum
Duty
Continuous
Ambient Temperature
-40 to 55 Degrees C
Ins. Class
B
Full Load Amps
0.4 A
Motor Bearings
Unit
Plug Type
2 Prong Lyall M-2-24
Item
ECM Unit Bearing Motor
Max. Ambient Temp.
55 Degrees C
Motor Design
ECM
Motor Mounting Type
Shroud
Motor Shaft Design
Threaded
Motor Mounting Position
All Angle
Usable @ 208V
No
Mounting Stud Pattern
9 13/16 in
Weight
4 lb
Usable @ 200V
No
Number of Shafts
1
Duty Cycle
Continuous
Mounting
Bracket
Number of Speeds
1
Frequency
60 Hz

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.4 A Full Load Amps, Non-Standard Frame, Output Watts 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Shroud, Motor Frame Material Aluminum
